Cypress - psoc4 development kit

Downloads

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download Cypress embOS demo for Cypress PSoC 4 Development Kit

Download embOS-Classic for Cortex-M and GCC

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

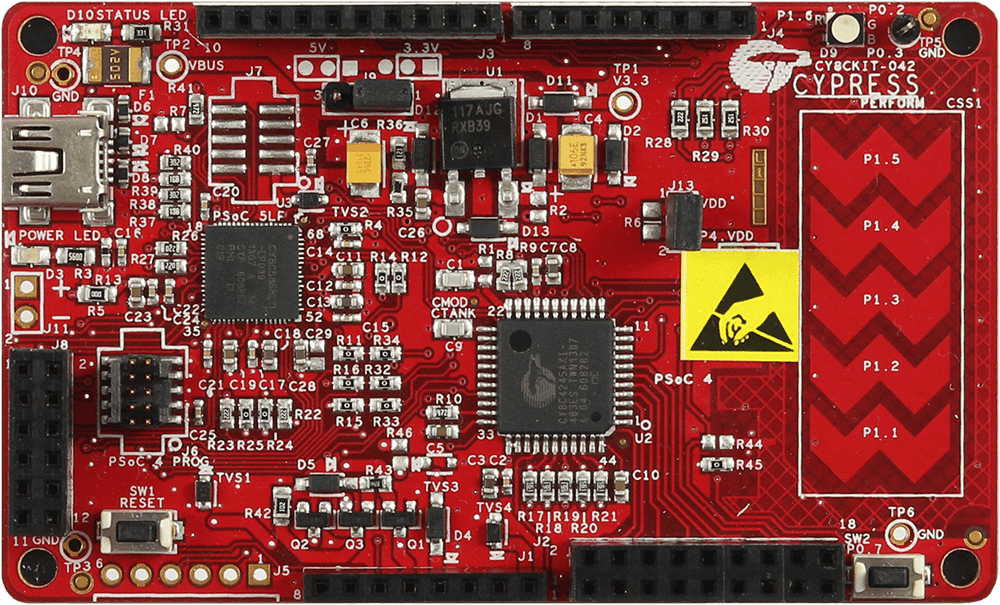

PSoC 4 Development Kit

Arduino™ shield-compatible headers
Digilent® Pmod™ peripheral module header
5-element CapSense™ slider
RGB LED
Power and status LEDs
Reset and user push-button switches
Multiple power supply options: JTAG/SWD header, USB, external power via LDO, or Arduino shield
3.3V or 5.0V operation (jumper)
JTAG/SWD debug connector 10 pin 0.1”
On-board PSoC 5LP for serial I/O (I2c or UART) bridge to PC

PSoC 4 CY8C4245AXI-483

48MHz ARM Cortex-M0 CPU with single cycle multiply
32kB Flash with read accelerator, 4kB SRAM
12-bit 1Msps sequenced SAR ADC
CapSense® Touch Sensing with SmartSense™ Auto-Tuning
2 op-amps
2 current DACs
2 low power comparators
2 Serial Communication Blocks (I2C, UART or SPI)
4 16-bit Timer/Counter/PWM Blocks
4 PLD-based Logic Blocks
36 Programmable GPIO
Low power 1.71V to 5.50V operation
150nA Hibernate mode, 20nA Stop mode
