SEGGER Evaluation Software for Microchip PIC32CX SG41 Curiosity Ultra

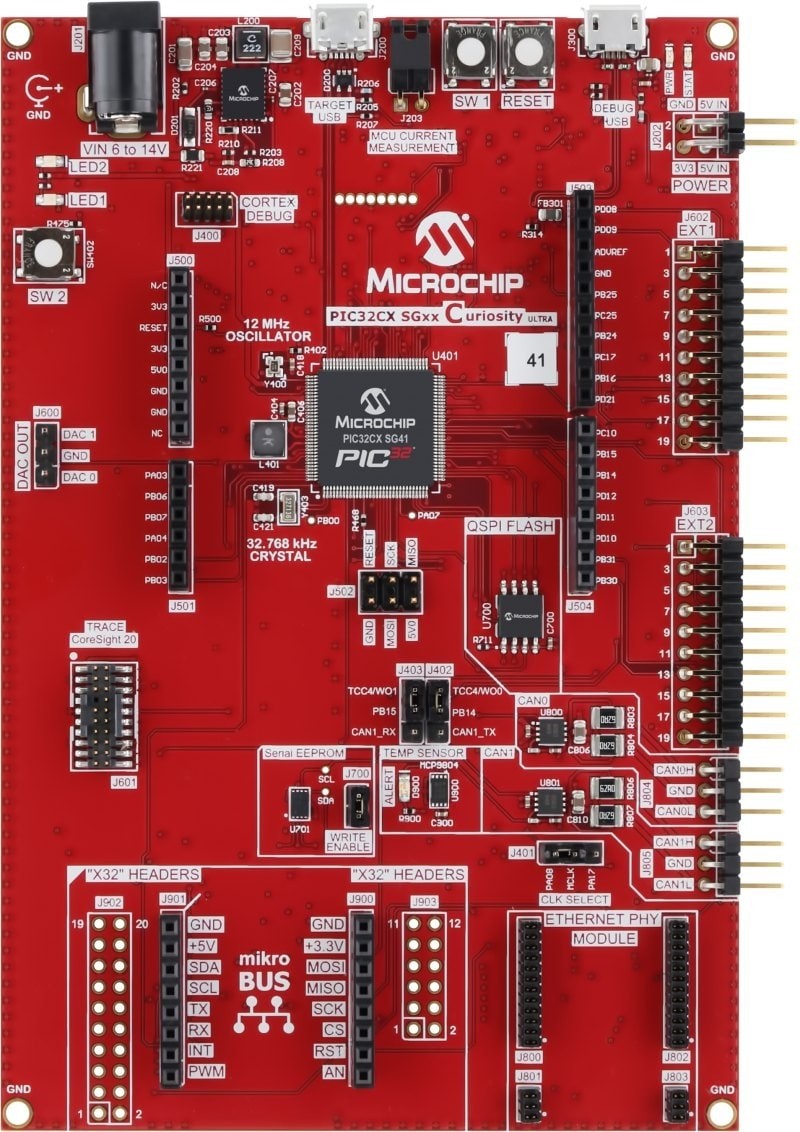

The image displays a red circuit board labeled "Microchip PIC32CX SGxx Curiosity Ultra." It features various components including microcontrollers, oscillators, headers, and connectors for programming and communication. The layout highlights areas for power input, debug ports, and sensory modules.

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download  embOS-Classic Cortex-M for PIC32CX SG41 and Embedded Studio

DownloadEmbedded Studio

Data Sheets

Microchip PIC32CX SG41 Curiosity Ultra

  • PIC32CX1025SG41128 microcontroller
  • USB interface, Host or Device
  • 64 Mbit Quad SPI Flash
  • AT24MAC402 Serial EEPROM with EUI-48™ MAC address
  • Ethernet 10/100 Mbps– RMII Interface with modular PHY Header
  • SD/SDIO card connector
  • Two CAN interfaces with on-board transceivers
  • I²C-based temperature sensor
  • DAC Output Header
  • mikroBUS header connector
  • Two extension headers
  • Arduino Uno header connectors
  • CoreSight 10 connector– 10-pin Cortex® Debug header (SWD)
  • CoreSight 20 connector– 20-pin Cortex Debug + ETM Connector (SWD and 4-bit Trace)
  • USB-powered
  • Power Header and Barrel Jack connector for external power sources
  • One mechanical reset button
  • Two mechanical programmable buttons
  • Two user LEDs
  • 32.768 kHz crystal
  • 12 MHz oscillator

PIC32CX SG41

  • Arm Cortex-M4F CPU
  • Running at up to 120 MHz
  • 1 MB Flash
  • 256 KB SRAM
  • Embedded Trace Module (ETM)
  • Embedded Trace Buffer (ETB)
