SEGGER Evaluation Software for Microchip PIC32MZ EC
Data Sheets
Microchip PIC32MZ EC
- On-board PIC32MZ2048ECH144: 200 MHz, 2 MB Flash and 512 KB RAM
- Integrated debugger/programmer
- USB powered
- 10/100 Ethernet
- CAN 2.0b, HI-Speed USB 2.0 host/device/dual-role/OTG
- 4 MB SQI Flash
- Can be used with Multimedia Expansion Board II
- Can be used with PIC32 Expansion Board using a PIC32MZ adaptor board.

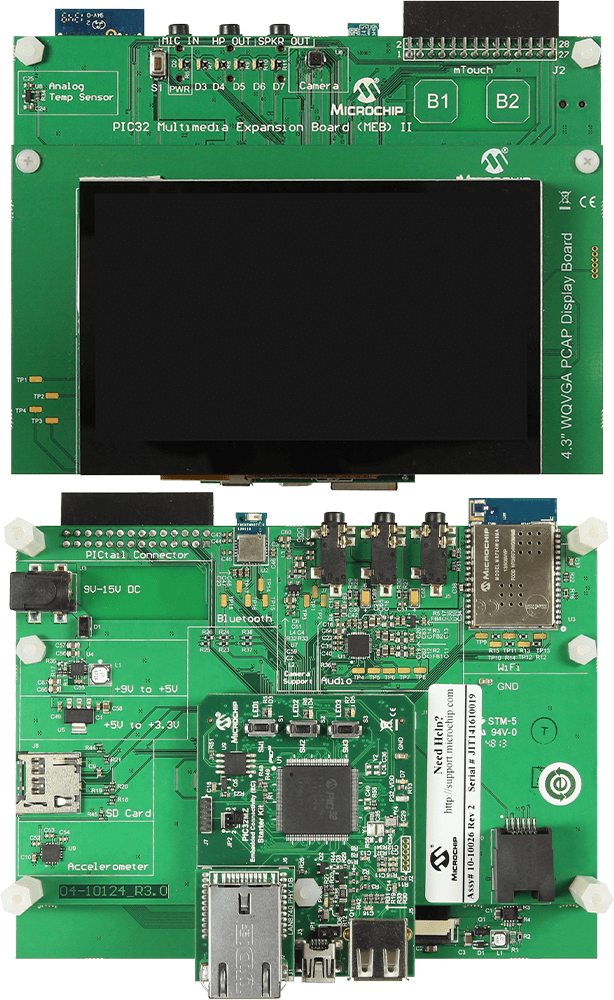

Multimedia Expansion Board II main features
- 24-bit stereo audio codec
- Integrated 802.11 b/g wireless module
- Low-cost Bluetooth HCI transceiver
- Optional EBI SRAM memory
- 4.3” WQVGA PCAP touch display daughter board
- microSD slot
- mTouch sensing solutions buttons
- Analog temperature sensor
- VGA camera
- PICtail connector
PIC32MZ2048ECH144
- 200 MHz/330 DMIPS, microAptiv core
- Dual Panel Flash for live update support
- 12-bit, 28 MSPS, 48-channel ADC module
- Memory Management Unit for optimum embedded OS execution
- Hi-Speed USB 2.0 Device/Host/OTG
- 10/100 Mbps Ethernet MAC with MII and RMII interface
- Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)
- 2MB Flash memory (plus an additional 160 KB of Boot Flash)
- 512KB SRAM memory
- 50 MHz External Bus Interface (EBI)
- 50 MHz Serial Quad Interface (SQI)
- Peripheral Pin Select (PPS) functionality to enable function remap
- 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
- Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols
- Two CAN modules 2.0B Active with DeviceNet addressing support
- Six 4-wire SPI modules (50 Mbps)
- SQI configurable as an additional SPI module (50 MHz)
- Five I2C modules (up to 1 Mbaud) with SMBus support
- Parallel Master Port (PMP)
- Hardware Real-Time Clock and Calendar (RTCC)
- Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)
- Nine Capture inputs and Nine Compare/PWM outputs
- Graphics interface: EBI or PMP
- Audio data communication: I2S, LJ, RJ, USB
- Audio data control interface: SPI and I2C™
- Audio data master clock: Fractional clock frequencies with USB synchronization
- 12-bit ADC Module
- Temperature sensor with ±2°C accuracy
