SEGGER Evaluation Software for CALLIOPE mini

  1. 1.Data Sheets
    1. 1.1.CALLIOPE mini
    2. 1.2.nRF51822
Nordic Semiconductor - Calliope Mini

SEGGER Evaluation Software

SEGGER Evaluation Software available upon request

Other downloads

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

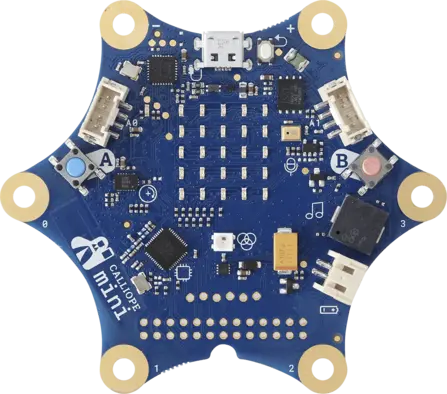

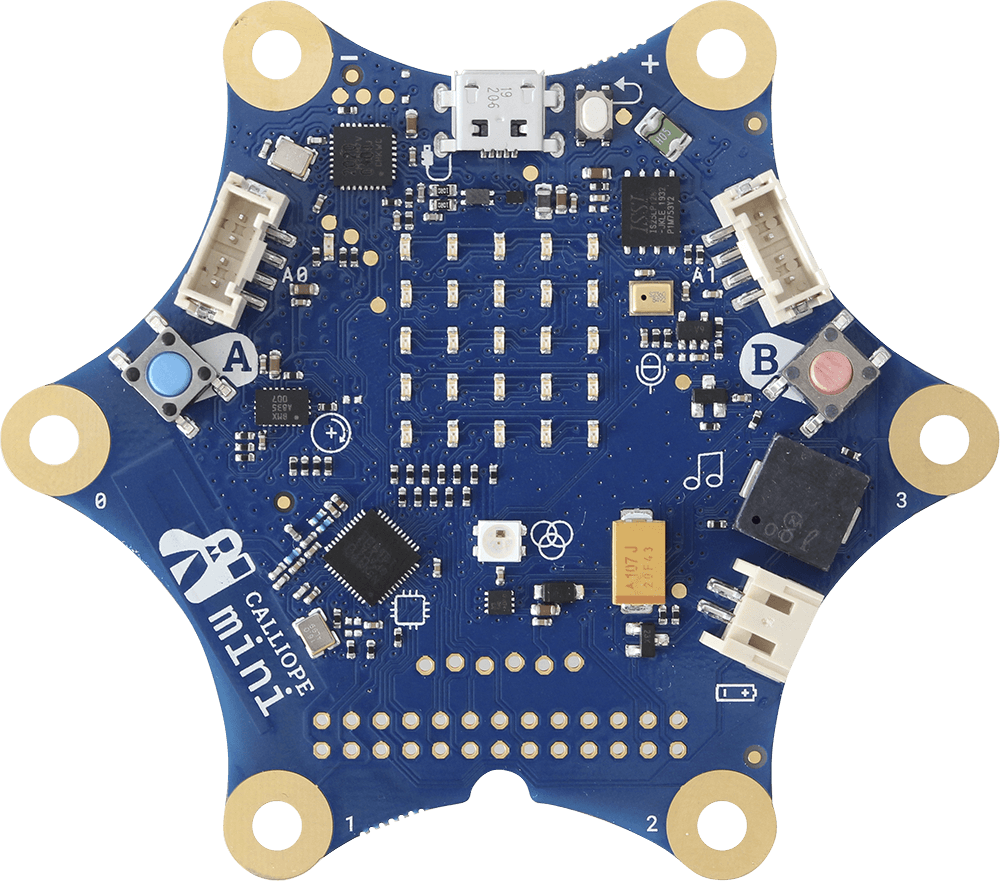

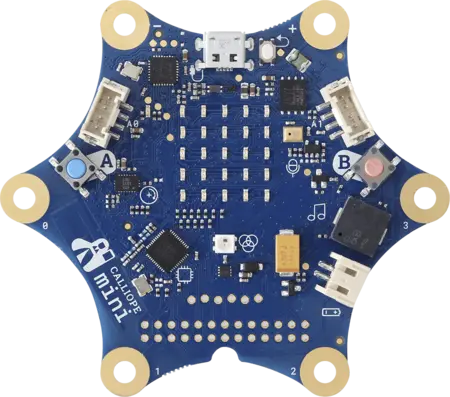

CALLIOPE mini

  • 5x5 Led matrix
  • Speaker
  • RGB Led
  • Buttons
  • Touch Pins
  • Motion sensor
  • Light sensor
  • Temperature sensor
  • Microphone
  • compass
  • Radio
  • Bluetooth
  • Grove adapter
  • Motor pins
  • Battery port
  • USB port
  • Processor
  • Status Led
  • Reset

nRF51822

  • Multiprotocol 2.4GHz radio
  • 32-bit ARM Cortex M0 processor
  • 256kB/128kB flash and 32kB/16kB RAM
  • Software stacks available as downloads
  • Pin compatible with other nRF51 Series devices
  • Application development independent from protocol stack
  • Fully on-air compatible with nRF24L Series
  • Programmable output power from +4dBm to -20dBm
  • RSSI
  • RAM mapped FIFOs using EasyDMA
  • Dynamic on air payload length up to 256 Bytes
  • Flexible and configurable 31 pin GPIO
  • Programmable Peripheral Interface – PPI
  • Simple ON/OFF global power modes
  • Full set of digital interfaces including: SPI/2-wire/UART
  • 10-bit ADC
  • 128-bit AES ECB/CCM/AAR co-processor
  • Quadrature demodulator
  • Low cost external crystal 16MHz ± 40ppm
  • Low power 16MHz crystal and RC oscillators
  • Ultra low power 32kHz crystal and RC oscillators
  • Wide supply voltage range (1.8 V to 3.6 V)
  • On-chip DC/DC buck converter
  • Individual power management for all peripherals
  • Package options: 48-pin 6x6 QFN/WLCSP, Thin-CSP
