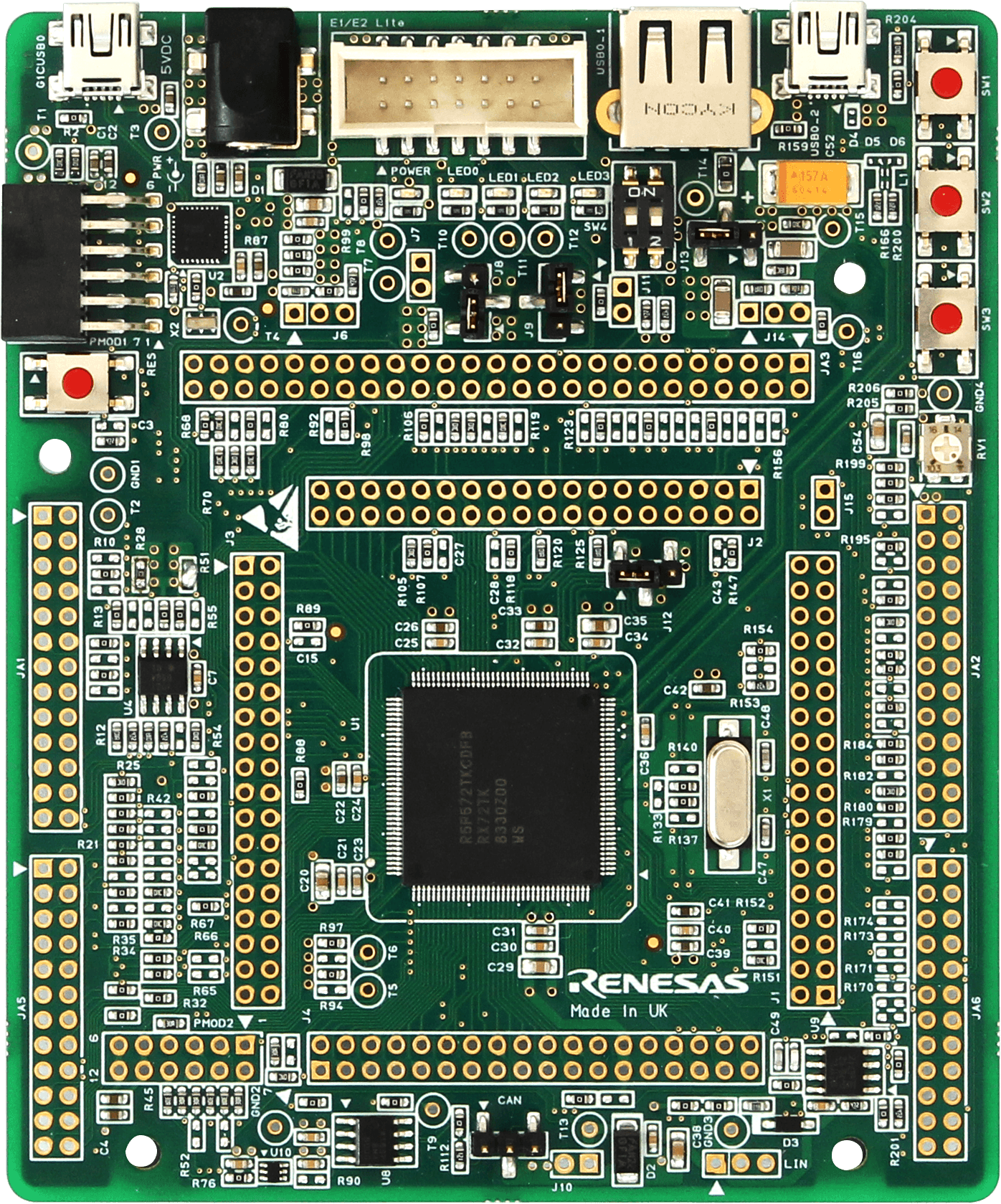

Renesas RX72T RSK
- 2 Application Board Interfaces
- Reset Switch
- Pmod Connector
- USB to Serial port
- 5VDC in
- USB2.0 FS (USB0 Host)
- USB2.0 FS (USB0 Function)
- 4 User LEDs
- 3 User Switches
- Potentiometer
- CAN connector
RX72T
- RXv3 Core 200 MHz operation (5.8 CoreMark/MHz)
- 2.7 to 5.5 V operation
- Operating Temperature -40 to 105 °C
- Program Flash up to 1 MB, SRAM up to 128 KB
- Dedicated accelerator
- RXv3 register bank save function
- Arithmetic unit for trigonometric functions
- Enhanced Analog
- 12-bit A/D Converter x 30 channels for 3 units , 12-bit D/A Converter x 2 channels
- 6-channels of Comparators and 6-channels of Pseudo-Differential PGA
- 200 MHz PWM
- 4 channels for 3-phase complementary switching, 2 channels for 5-phase complementary switching, 10 channels for single-phase complementary switching
- 4-channel high-resolution PWM enables minimum 195 ps timing adjustment
- Trusted Secure IP Lite (AES/TRNG)
