MIDI class

Contact us
Downloads
Documentation
SEGGER emUSB-Device
  1. 1.Overview
    1. 1.1.Application Examples for emUSB-Device MIDI
    2. 1.2.Key features
  2. 2.Technical details
  3. 3.Components

Overview

The USB class protocol for MIDI was defined for mapping the MIDI protocol to USB, so that music playing and controlling devices can interact via USB. These music devices can be of any kind using the MIDI interface via USB, whether MIDI controllers, MIDI sequencers, drum computers, instruments, effect units, samplers, or synthesizers.

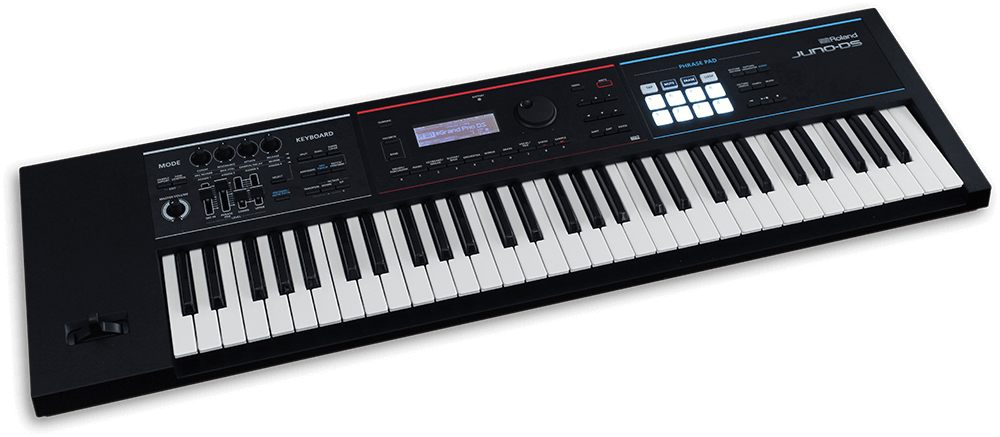

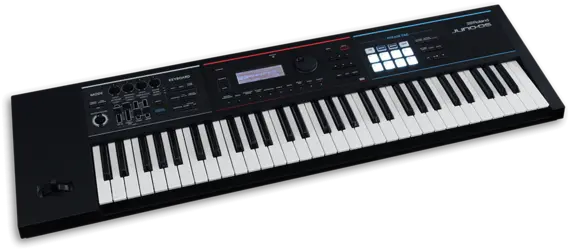

Keyboard

The emUSB-Device MIDI class allows the user to create their own USB MIDI capable device.

Application Examples for emUSB-Device MIDI

audio keyboard

Synthesizer

novation Launchpad

Controller

MIDI effects unit

Effects Unit

Key features

  • USB MIDI V1.0 implementation
  • Ability to send MIDI commands and receive MIDI commands from the host
  • Small footprint

Technical details

SEGGER’s implementation of the MIDI class V1.0 is designed with minimal resource usage in mind, especially targeted to embedded devices.

The MIDI class allows arbitrary MIDI jack configurations.

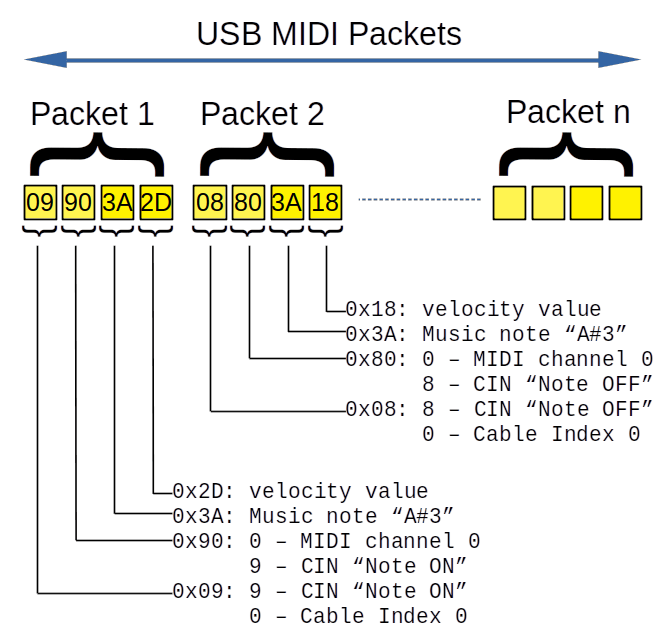

Writing and receiving USB MIDI event packets is possible.

emUSB Device MIDI12

Components

Components required to use the MIDI class:

  • emUSB-Device MIDI
  • emUSB-Device core
  • emUSB-Device target driver

Resource usage
