FTDI UART class
Overview

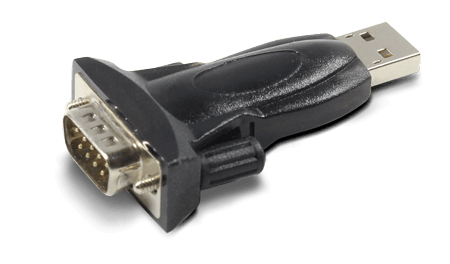

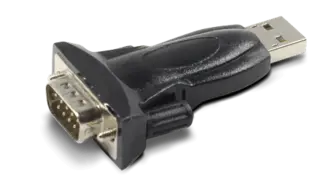

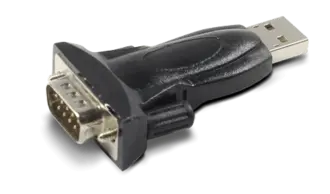

Many devices formerly connected via UART have been equipped with USB interfaces using serial to UART converters such as the FTDI UART and FT-X devices from FTDI. emUSB-Host is capable of easily addressing such devices.
Key features
- Compatibility with different FTDI UART devices
- Ability to send and receive data
- Ability to set various parameters, such as baud rate, number of stop bits, parity
- Handling of multiple FTDI UART devices at the same time
- Notifications about FTDI UART connection status
- Ability to query the FTDI UART line and modem status
- Small footprint
Requirements
Components required to use emUSB-Host FTDI UART:
- emUSB-Host FTDI UART (Included in emUSB-Host PRO package)
- emUSB-Host core (Included in emUSB-Host PRO package)
- emUSB-Host target driver (One driver is included in emUSB-Host PRO package)
- Real-time operating system (embOS or other)
Example Code Included
An example application which uses the API is provided with any shipment or eval software including emUSB-Host. This example displays information about the FTDI UART device in the I/O terminal of the debugger. In addition the application then starts a simple echo server, sending back the received data. Several application samples can also be found on the emUSB-Host sample page.
Compatibility
The following devices were tested with the current FTDI UART driver:
- FT8U232AM
- FT232B
- FT232R
- FT2232D
- FT231X
- FT230XQ
