SEGGER emUSB-Host
  1. 1.Overview
    1. 1.1.Key features
  2. 2.Application Samples emUSB-Host MTP
  3. 3.Structure of MTP Component
  4. 4.Compatibility
    1. 4.1.Additional Information
  5. 5.Requirements

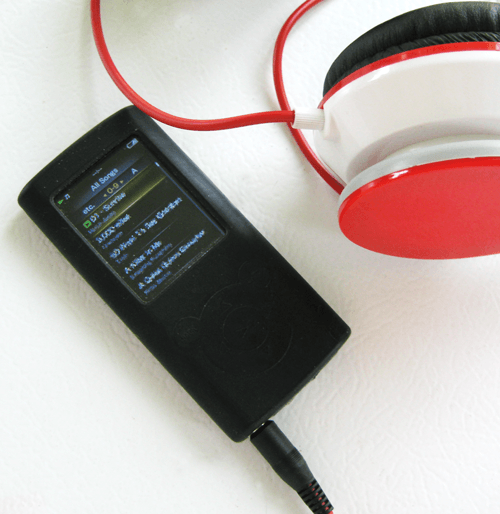

media player



Overview

The Media Transfer Protocol (MTP) is a USB class protocol which can be used to transfer files to and from storage devices. MTP is an official extension of the Picture Transfer Protocol (PTP) designed to allow digital cameras to exchange image files with a computer. MTP extends this by adding support for all types of files.

Key features

  • Communicate with any MTP device
  • File system not necessary
  • Small memory footprint
  • High performance

Application Samples emUSB-Host MTP

smartphone

Smartphone

camera

Camera

Structure of MTP Component

An MTP device connected to emUSB-Host is accessed directly by the application through the MTP class API. In addition to being able to read and write files on a MTP device, MTP properties can be retrieved and modified by the application.

emUSB device mtp class structure graph

Compatibility

The emUSB-Host MTP implementation works out of the box with most vendors' MTP device implementations. Functionality has been confirmed with a multitude of Android distributions, Windows phones and other MTP devices.

Additional Information

For more technical details about MTP and PTP follow this link.

Requirements

Components required to use emUSB-Host MTP:

  • emUSB-Host MTP
  • emUSB-Host core (Included in emUSB-Host Base package)
  • emUSB-Host target driver (One driver is included in emUSB-Host PRO package)
  • Real-time operating system (embOS or other)

Resource usage
