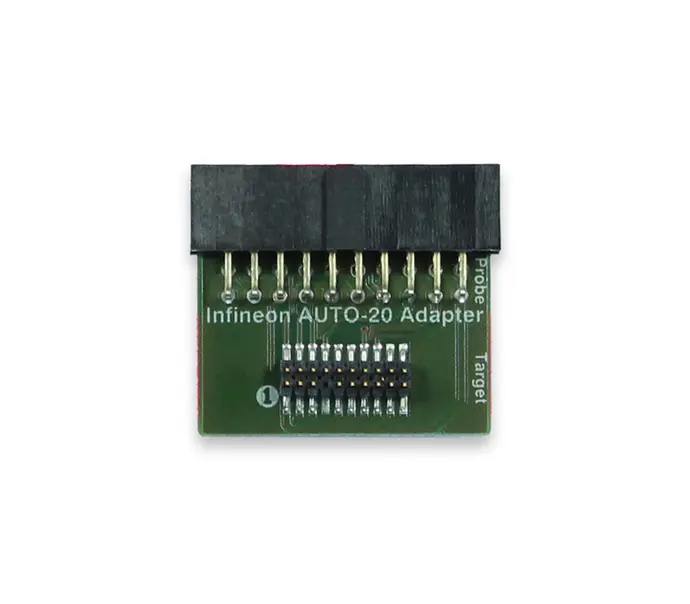

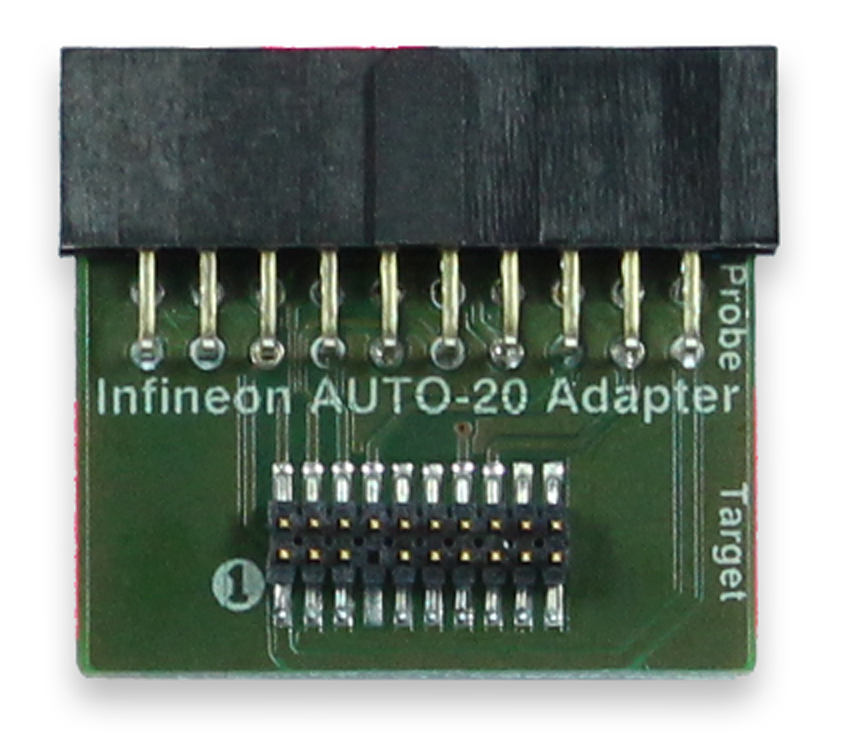

Infineon AUTO-20 Adapter

The Infineon AUTO-20 Adapter allows a JTAG connection to a target hardware system which has an Automotive Connector. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector.

The SEGGER Infineon AUTO-20 Adapter can be used to connect a Flasher device to Infineon AURIX™ -TC3xx microcontrollers. It may also be used to connect the Flasher to a different target as far as the target connector uses the same pinout as shown below.
