Overview

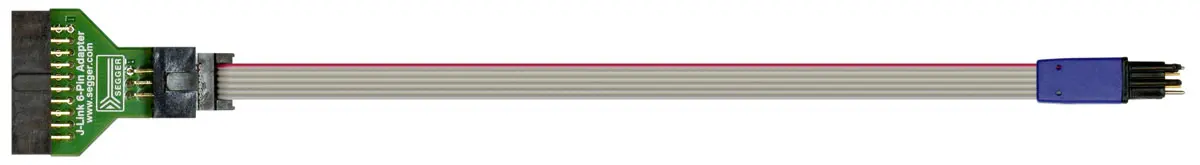

The 6-Pin Needle Adapter has been designed to connect J-Link or Flasher to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures that the adapter can only be connected in one way. The 6-Pin Needle Adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the standard 20-pin 0.1'' connector to a 6-pin needle connector.
Please note:
If JTAG support is required, use the 10-Pin Needle Adapter instead since the 6-Pin Needle Adapter does not provide enough pins for JTAG.
Key Features
- No additional connector required on your PCB
- Very small footprint - even smaller than the footprint of the 10-Pin Needle Adapter
- High reliability spring pins for secure connections
- Designed with 3 locating pins, so the adapter can not be connected the wrong way
Pinout

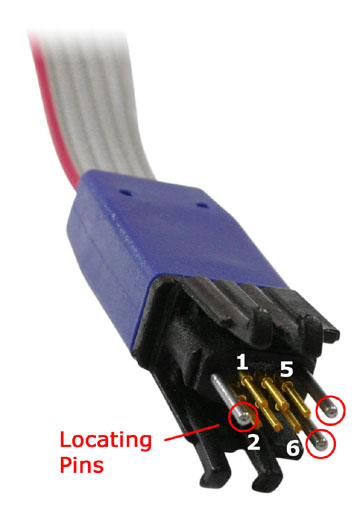

As you can see on the image below, the three locating pins ensure, that the adapter can not be connected to the PCB the wrong way. Moreover, the two "legs" on each side of the connector guarantee a stable and secure contact between pins and the PCB.
Three locating pins ensurethat the adapter cannot be connected the wrong way:

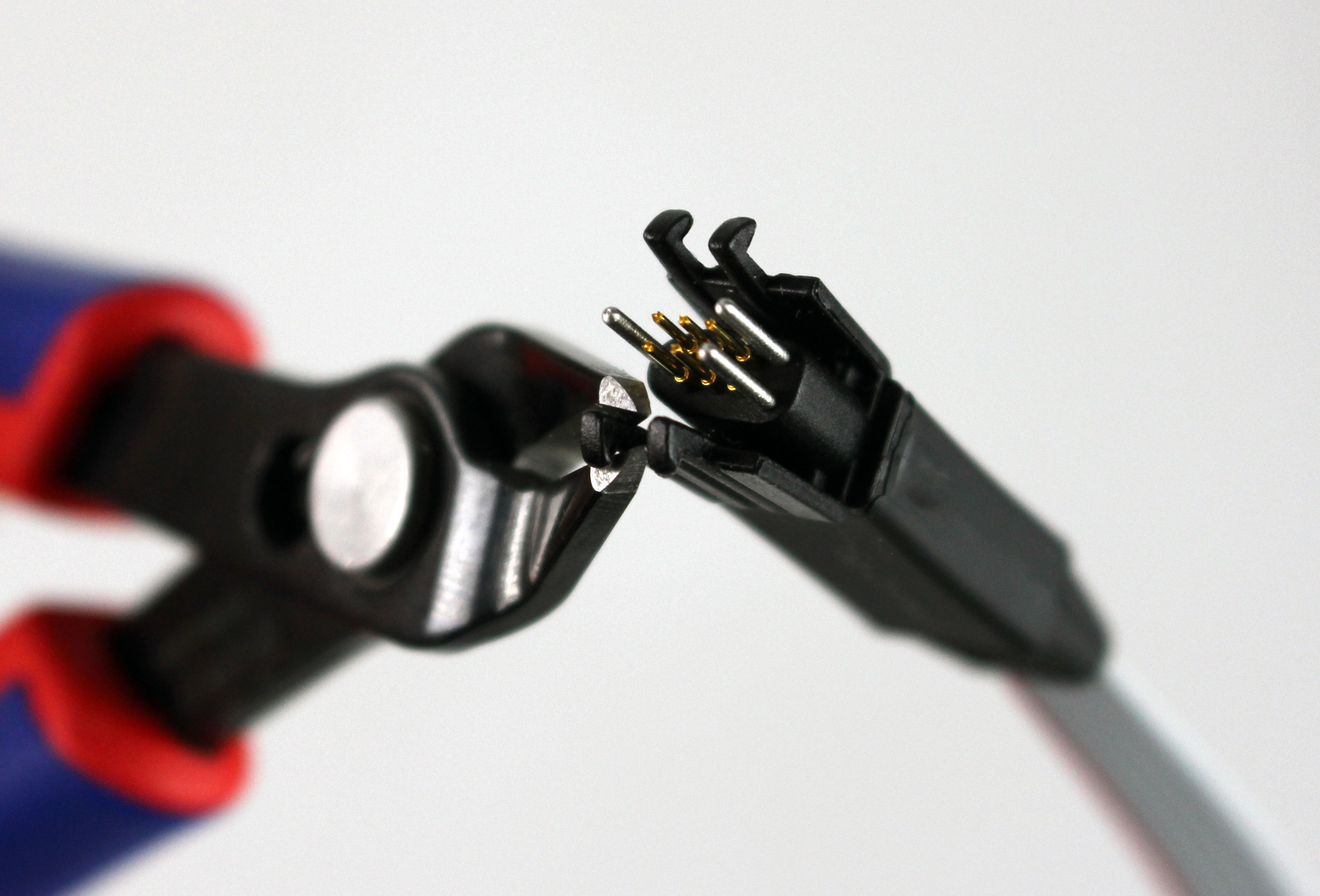

In case of space problems, the two "legs" on each side can easily be cut off as shown in the image below:

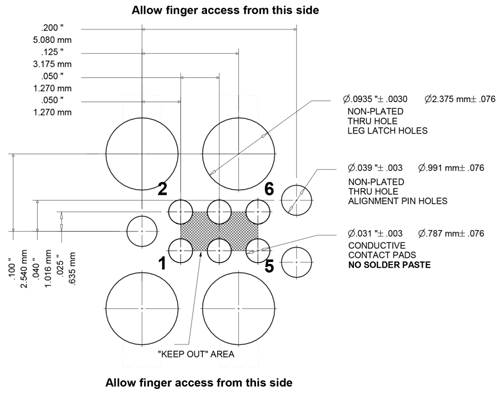

Footprint
Layout Problems to Avoid

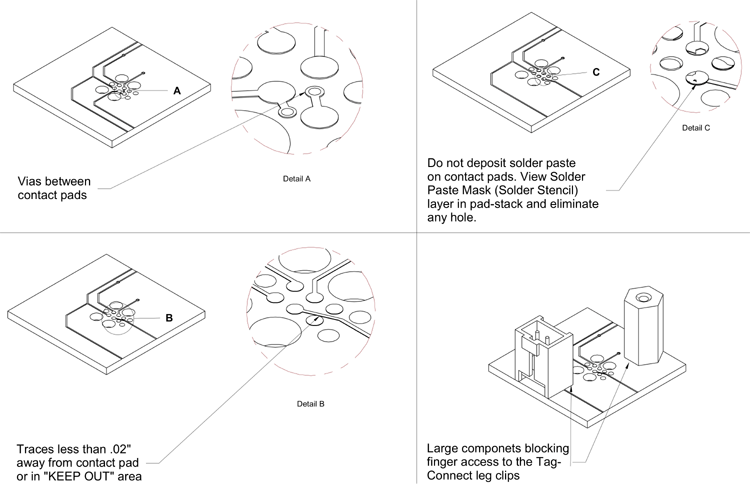

Please be sure to avoid the situations illustrated below to ensure the J-Link 6-Pin Needle Adapter functions properly.
The PDF version of the datasheet can be downloaded here. In addition to the footprint and hints to avoid layout problems, this PDF includes detailed information about the cable, plug and connector of the J-Link 6-Pin Needle Adapter.
Schematics

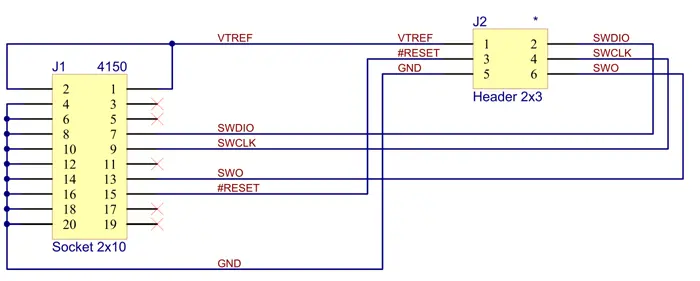

The following picture shows the connections from the 20pin standard JTAG connector to the 6-pin, 0.05 inch needle pattern:
