SEGGER Evaluation Software for embOS/IP Switch Board

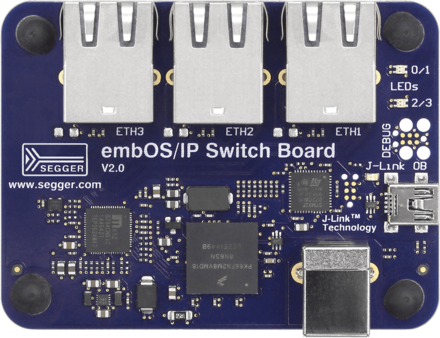

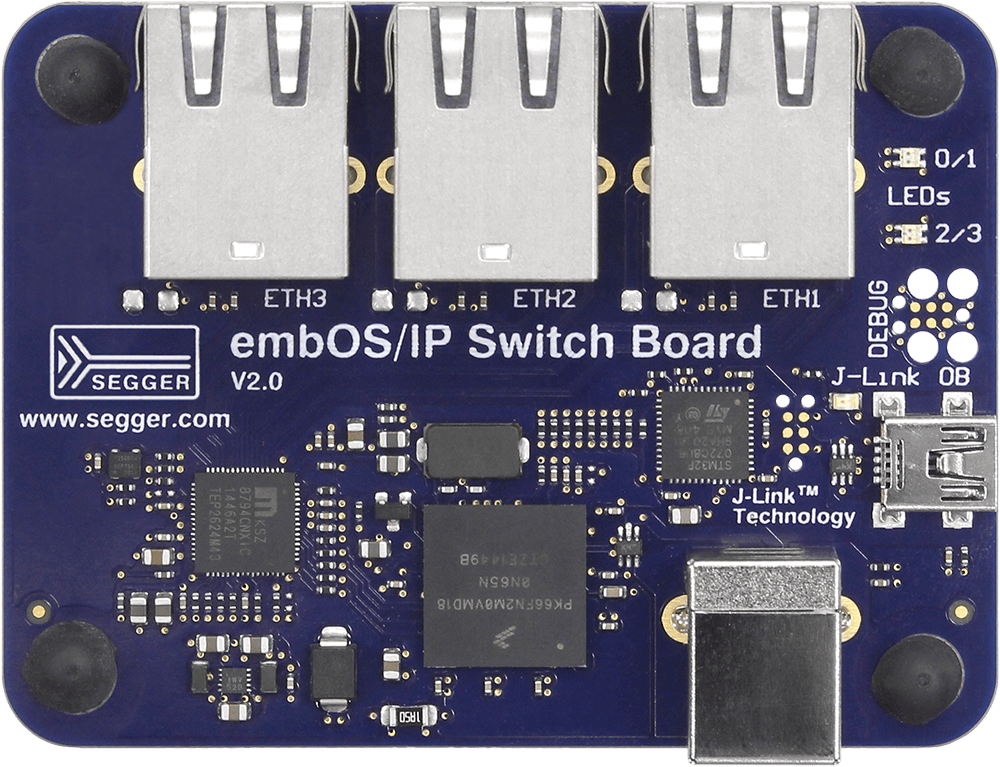

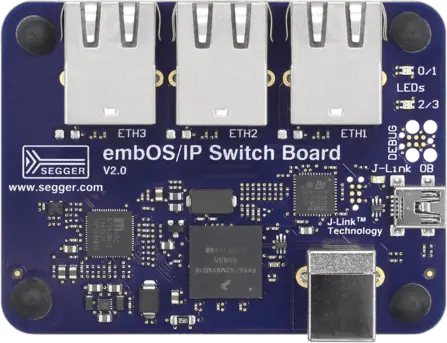

SEGGER embOS/IP Switch Board

Price List - Evaluation Boards

Buy now

Data Sheets

embOS/IP Switch Board

  • Micrel/Microchip KSZ8794CNX integrated 4-port 10/100 managed Ethernet switch with Gigabit RGMII/MII/RMII interface
  • 3 RJ45 Ethernet connectors
  • NXP Kinetis K66 MCU (MK66FN2M0VMD18)
  • On-board debug probe J-Link-OB with Drag & Drop (STM32F072, mini A/B-type connector)
  • USB device: High speed, B-type connector
  • LEDs: 2x BiColor red/green
  • No jumpers or solder jumpers
  • Rubber feet
  • Dimensions 80 mm x 60 mm

Switch main features

  • Layer 2 managed 4-port switch
  • 3 10/100 Mbps copper ports + 1 10/100/1000 Mbps uplink port
  • Internal biasing, on-chip termination
  • Enhanced power management features incl. Energy Efficient Ethernet (EEE), PME, WoL
  • Programmable rate limiting and priority ratio
  • Tagged and port-based VLAN
  • Port based security and ACL-rule based packet filtering technology
  • QoS priority with four queues
  • High-performance memory bandwidth and a shared memory-based switch fabric with non-blocking support

Microcontroller — Kinetis MK66FN2M0VMD18

  • 180 MHz ARM Cortex-M4 based core with DSP instructions and Single Precision Floating Point unit
  • 2 MB program flash memory, 256 KB RAM, 4 KB FlexRAM
  • Memory protection unit with multi-master protection
  • Ethernet controller with RMII interface to external PHY and hardware IEEE 1588 capability
  • USB high-/full-/low-speed On-the-Go with on-chip high speed transceiver

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emNet

BASE + FTP Client, FTP Server, NetBIOS Name Service, SMTP Client, Tail Tagging, emNet driver for Freescale Kinetis K60/K70

emWeb

Web Server

  Download   embOS/IP SwitchBoard Evaluation software for SEGGER Embedded Studio

Other downloads

DownloadEmbedded Studio

Documentation

 Download   embOS/IP Switch Board documentation

 Download   embOS/IP Switch Board Schematic

Download   AN0020: Getting Started with SEGGER Evaluation Software

SEGGER Notifications

Subscribe to SEGGER Eval Software Notifications

Getting Started

Getting Started with SEGGER embOS/IP Switch Board

The embOS/IP Switch Board is intended to be mainly a demonstrator board for the Tail Tagging add-on of SEGGER's embedded IP stack emNet. Micrel/Microchip has developed switches which can expand one physical port into 1+n ports, supported by the so-called Tail Tagging mode. This enhancement allows to establish multiple physical external ports when only one physical Ethernet port is available on the CPU - by choosing another PHY.

The embOS/IP Switch Board provides a solid starting point for a project that requires multiple physical Ethernet ports by using SEGGER’s middleware products.

Full instruction click here.

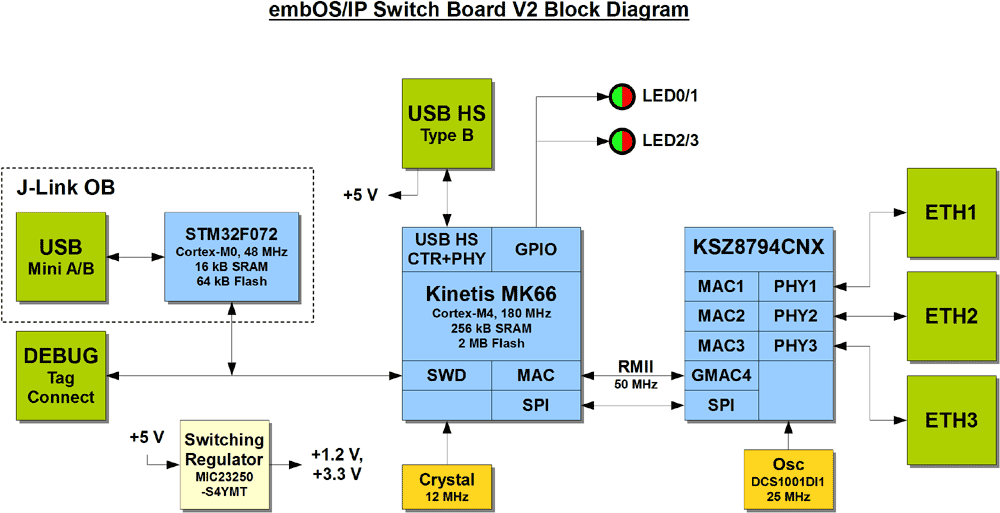

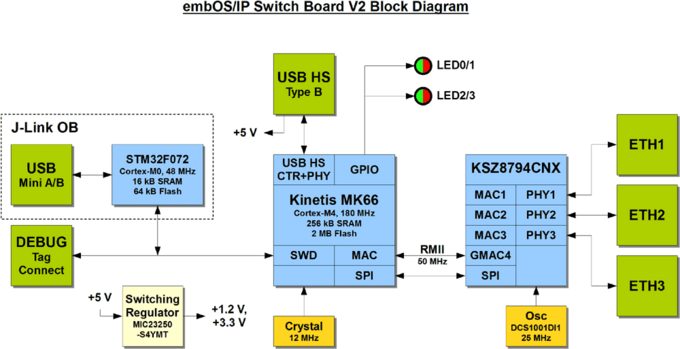

SEGGER - embOS/IP SwitchBoard V2 BlockDiagram
