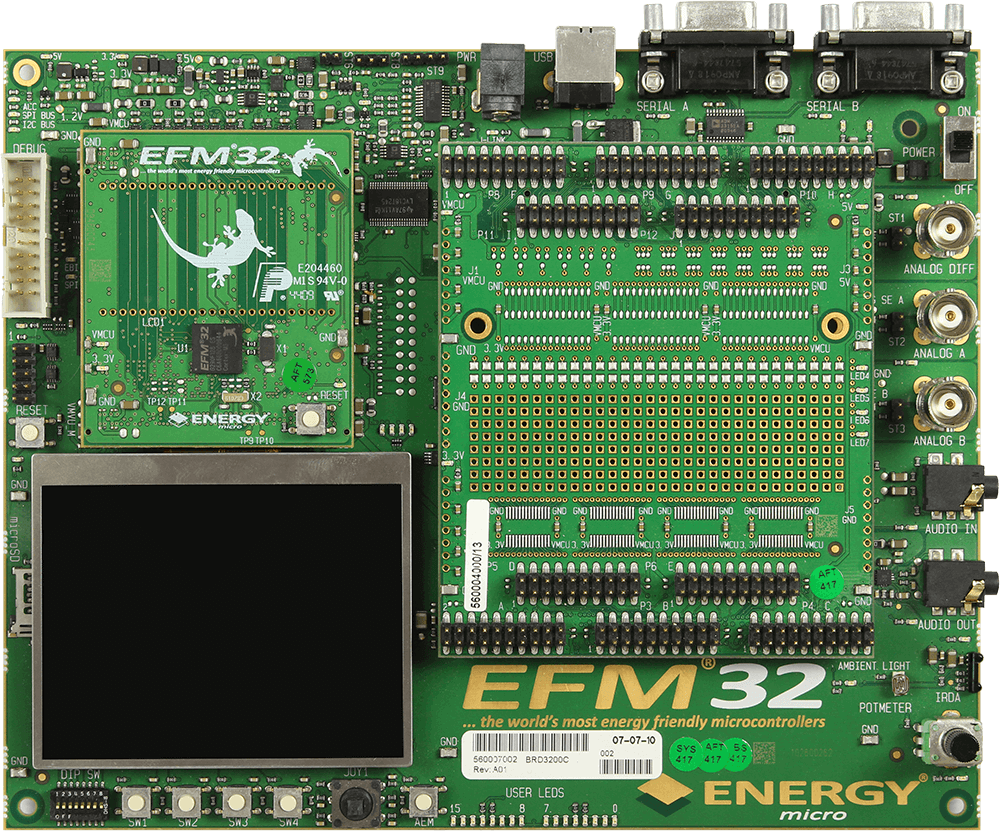

EFM32 Gecko DK
- Advanced Energy Monitoring system for precise current tracking.
- Special hardware configuration for isolation of the MCU power domain.
- Replaceable prototyping board for quick custom application development.
- Full feature USB debugger / emulator with debug out functionality.
- 3.5-inch TFT-LCD 320x240 pixel RGB color display.
- Board Controller for board configuration / signal routing.
- Single ended and differential ADC inputs.
- Line-in stereo audio input amplifier.
- Line-out stereo audio output amplifier.
- 2 RS232 connectors.
- 3-axis accelerometer.
- SPI Flash and microSD card reader (SPI mode).
- EEPROM.
- Temperature sensor.
- IrDA transceiver.
- 256Kx16bit / 512KB parallel bus SRAM.
- 2Mx16 / 4MB parallel bus NOR Flash.
- Ambient light sensor and potmeter.
- 5 way joystick.
- 4 User buttons, 8-bit DIP switch and 16 user LEDs.
EFM32G290F128 ES / EFM32G890F128 ES
- High Performance 32-bit processor @ up to 32 MHz
- Memory Protection Unit
- Wake-up Interrupt Controller
- Flexible Energy Management System
- 128/64/32 KB Flash
- 16/16/8 KB RAM
- 90 General Purpose I/O pins
- 8 Channel DMA Controller
- 8 Channel Peripheral Reflex System for autonomous inter-peripheral signaling
- Hardware AES with 128/256-bit keys in 54/75 cycles
- Integrated LCD Controller for up to 4×40 segments
- External Bus Interface for up to 64 MB of external memory mapped space
- Ultra low power precision analog peripherals
- Ultra efficient Power-on Reset and Brown-Out Detector
- 2-pin Serial Wire Debug interface
- Single power supply 1.8 to 3.8 V
