J-Trace Mictor 38 Adapter

The J-Trace Mictor 38 Adapter connects from the standard 20-pin connector to the 38-pin Mictor connector.

Buy now
Compare J-Trace models
Documentation
SEGGER Debug & Trace Probes

Overview

J-Trace Mictor 38 Adapter
J-Trace Mictor 38 Adapter

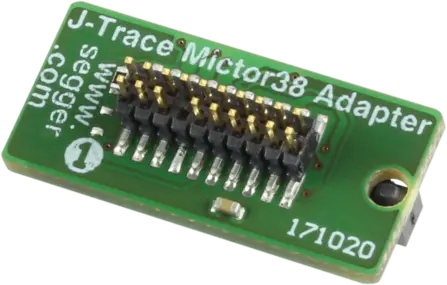

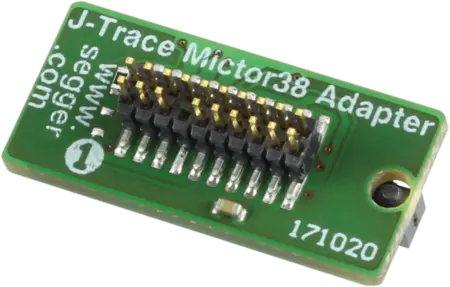

The J-Trace Mictor 38 Adapter connects to the 38-pin Mictor connector. The pinout follows the single target connector pinout specification as defined in the Arm "ETM Architecture Specification". The adapter connects the GND, JTAG and some trace pins to their counterparts on the 19-pin Cortex-M connector.

Four trace data pins as well as the trace clock pin present on the Mictor connector are routed to the Cortex-M connector for trace. The 38-pin Mictor side of the adapter can be plugged either directly into the target side or via trace cable. The J-Trace side connects to J-Trace via half-pitch flat cable. Take a look at the J-Trace overview for more information on trace.

J-Link_Mictor38_Adapter_Pinout

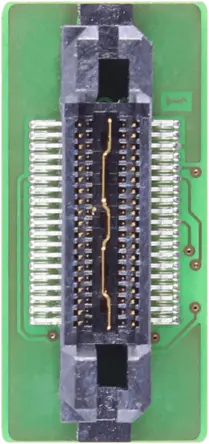

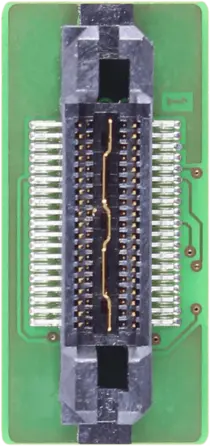

j-trace-mictor-38-adapter-bottom-vert

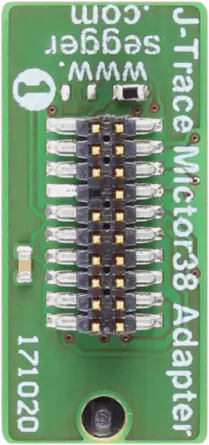

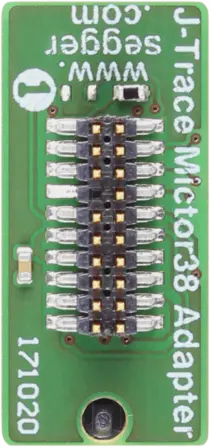

j-trace-mictor-38-adapter-top-vert
PinSignal
5GND
6TRACECLK
9nRESET
11TDO
12,14VTref
15TCK
17TMS
19TDI
21TRST
24TRACEDATA3
26TRACEDATA2
28TRACEDATA1
38TRACEDATA0
