Infineon Aurix DAP-10 Adapter

Seamless connectivity for Flasher

  • Infineon AURIX™ DAP connectivity
  • OCDS debug interface
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Technical specifications
  3. 3.Pinout & schematics
  4. 4.Suitable products
    1. 4.1.Flasher

Overview

Infineon Aurix DAP-10 Adapter

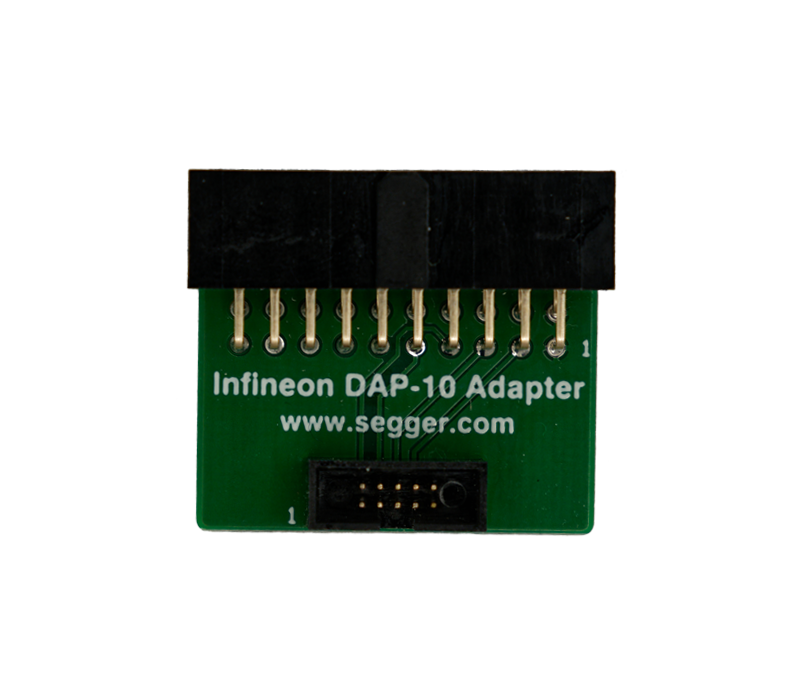

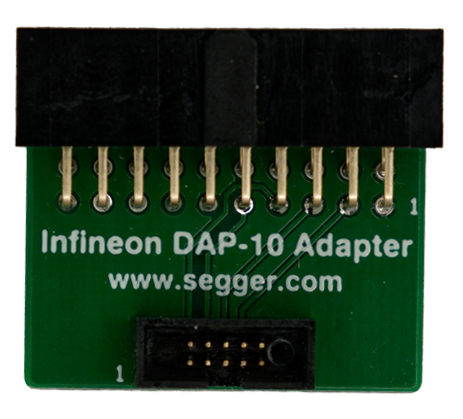

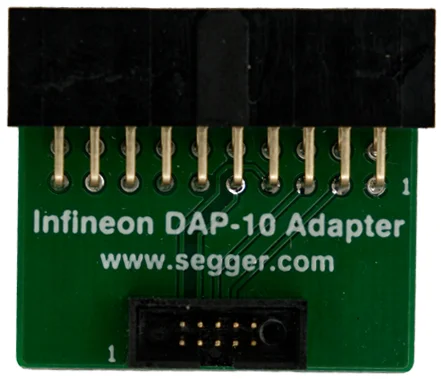

The Infineon AURIX™ DAP-10 Adapter connects SEGGER Flasher devices to target hardware with a 10-pin DAP interface, supporting Infineon AURIX™ microcontrollers and compatible targets.

Technical specifications

Target interface
10-pin, 0.05" Samtec FTSH connector
SEGGER interface
20-pin target interface
Supported MCUs
Infineon AURIX™ TC2xx, TC3xx, TC4xx, C167
Cable
15 cm ribbon cable included

Pinout & schematics

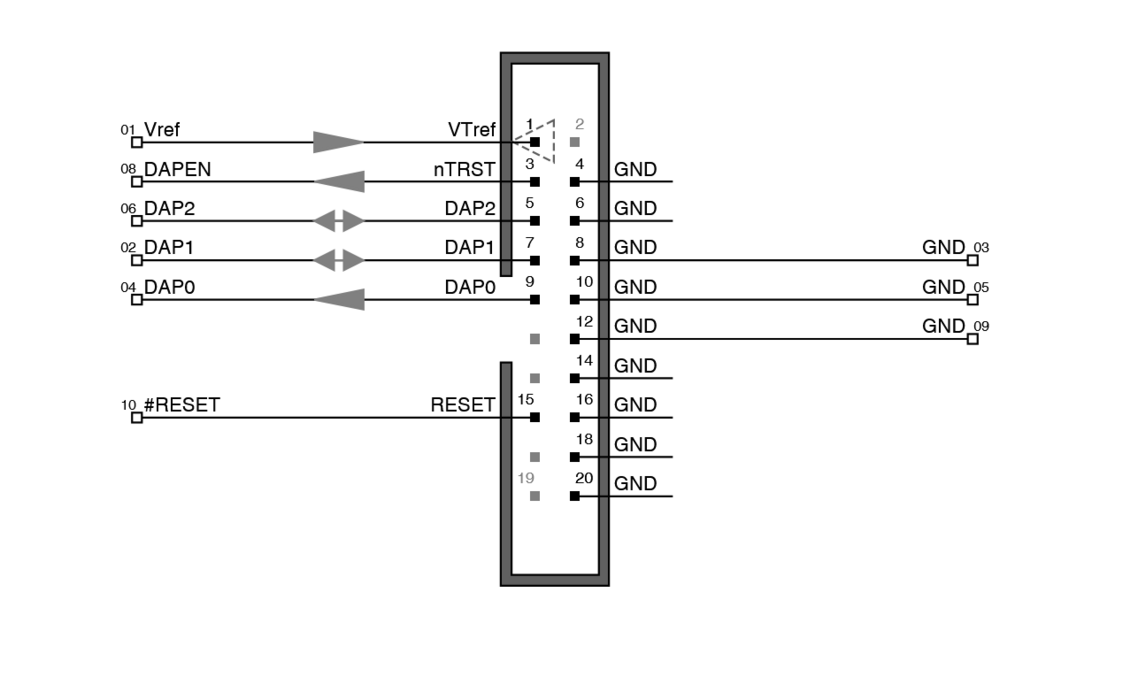

Schematic diagram showing the connections between a J-Link/Flasher and a target device. The labels include VTREF, DAP0, DAP1, DAP2, DAPEN, and RESET, indicating the pin connections. The left side is marked "J-Link / Flasher" and the right side is labeled "Target.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.
