Renesas M16C Family 10-Pin Adapter

Seamless connectivity for Flasher

  • Multi-MCU target bridge
  • 10-Pin adaption
Buy now Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinout & schematics
  3. 3.Suitable products
    1. 3.1.Flasher

Overview

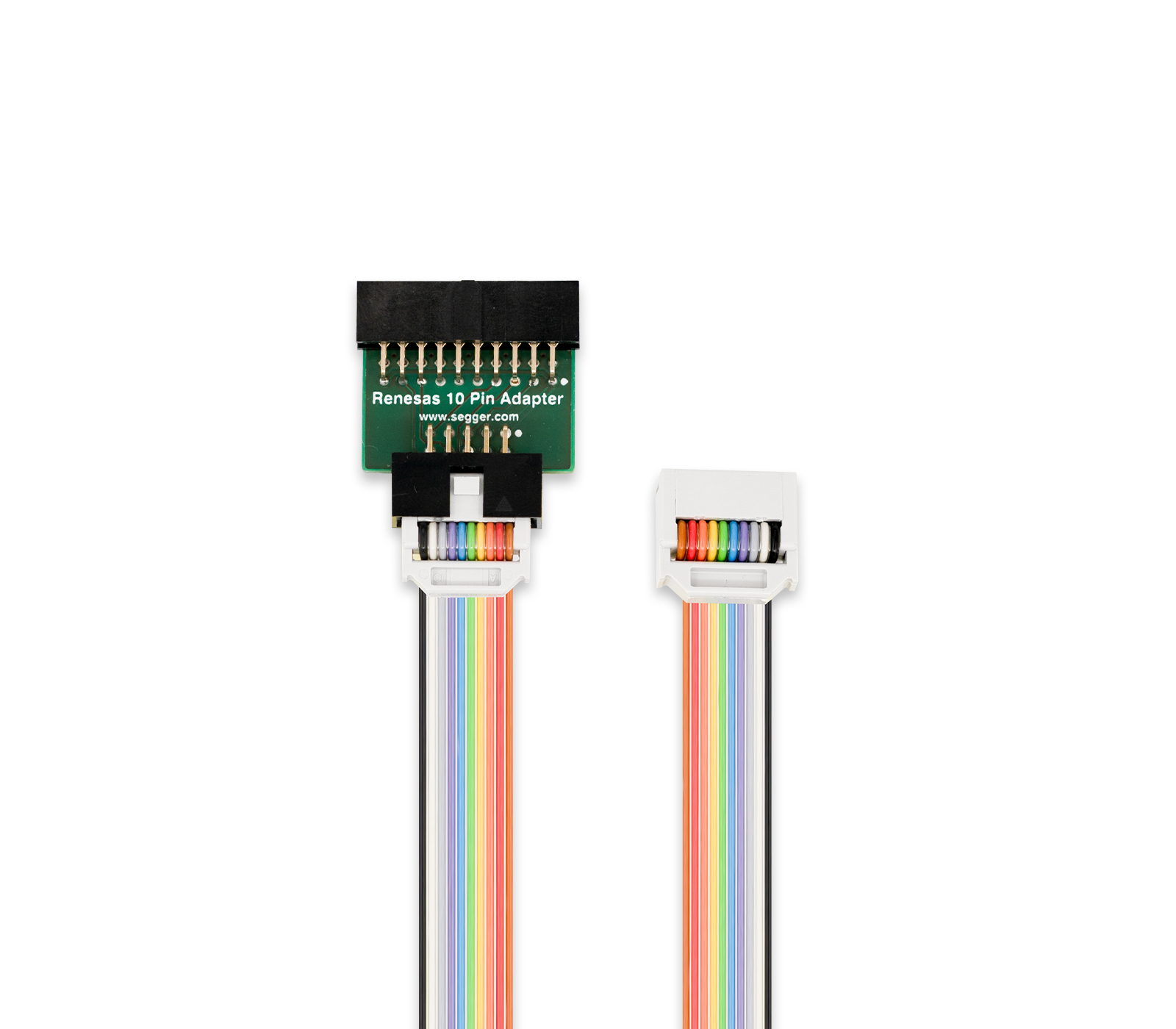

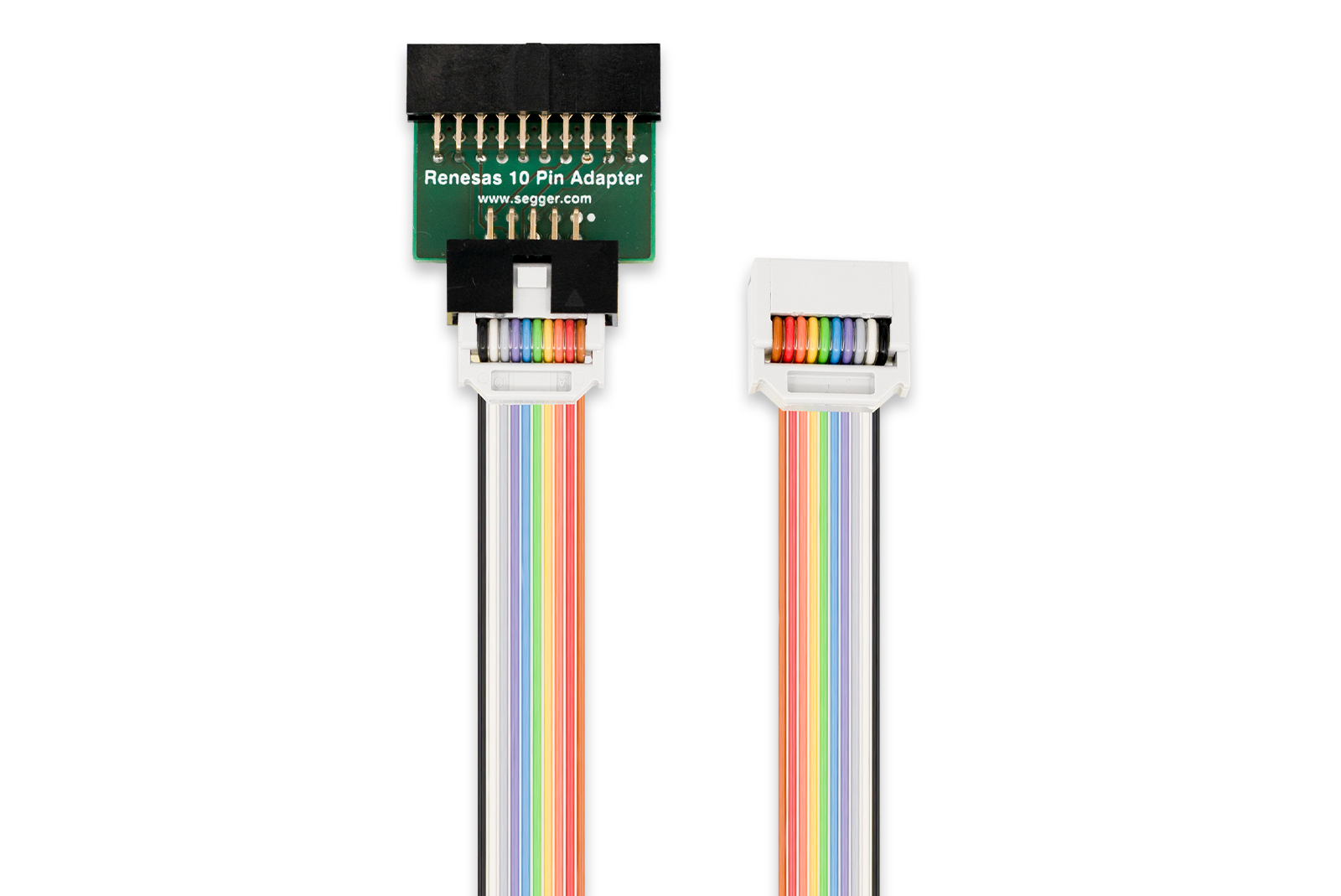

Renesas 10-Pin Adapter

The Renesas M16C Family 10-Pin Adapter adapts from the standard 20-pin connector of Flasher Pro and other Flasher models to target hardware such as the M16C, M32C, R8C & R32C using a Renesas 10-pin programming connector. Additionally, it serves to adapt to existing infrastructure in cases where Flasher 3, Flasher 4, or Flasher 5 (Pro) are being replaced by Flasher Pro. When using this product, make sure that the pinout of the target system matches the pinout shown. The adapter can only be used if the pinout of the 10-pin connector side is the same.

Pinout & schematics

Schematic diagram displaying connections between a Probe/Programmer and a Target device. It includes labeled pins for VCC, CE, SCLK, TXD, RXD, BUSY, CNVss, RESET, and EPM, represented in a clear, organized manner.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.
