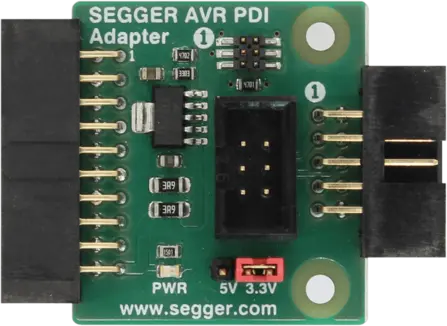

AVR PDI Adapter

The AVR PDI Adapter adapts from the standard 20-pin 0.1" connector to the 6-pin 0.1" AVR PDI connector, 6-pin 0.05'' AVR PDI connector or 10-pin 0.1'' AVR PDI connector.

Buy now
Compare Flasher adapters
Documentation
Production Tools Icon

Overview

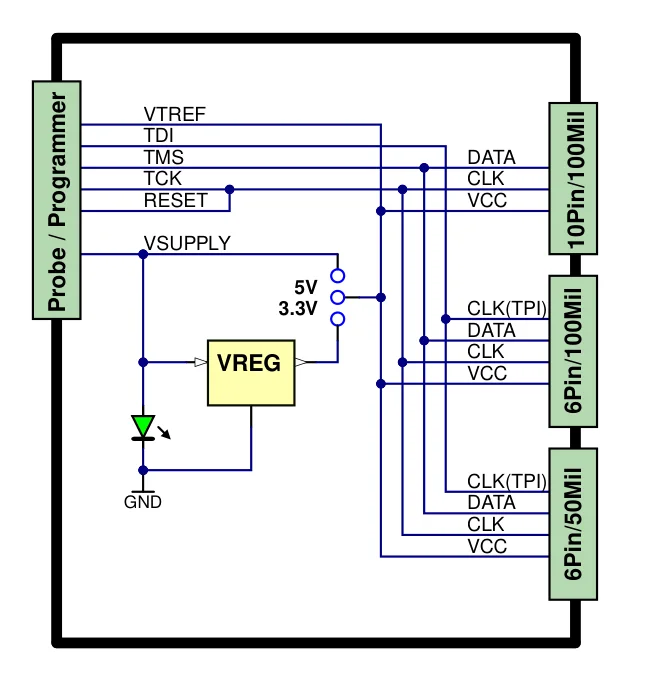

The AVR PDI Adapter adapts from the standard 20 pin 0.1" connector to the 6-pin 0.1" AVR PDI connector, 6-pin 0.05'' AVR PDI connector or 10-pin 0.1'' AVR PDI connector. The adapter is able to optionally power the connected target hardware. 3.3 V or 5 V supply voltage can be selected using a Jumper. The target is supplied via the VTREF connection when the supply option is jumpered.

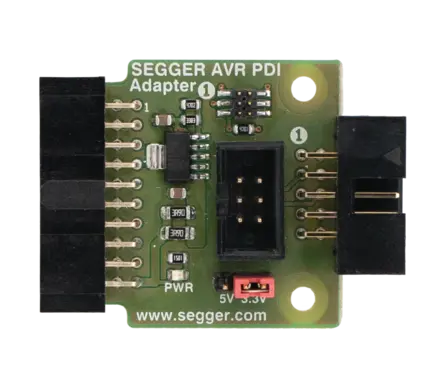

AVR PDI Adapter

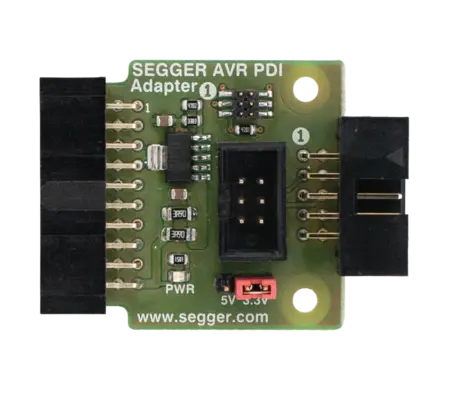

AVR PDI Adapter
PinSignal
1DATA
2VTRef
3n.c.
4n.c.
5CLK
6GND
PinSignal
1n.c.
2GND
3DATA
4VTRef
5n.c.
6CLK
7n.c.
8n.c.
9n.c.
10GND
