STDC14 Adapter

Seamless connectivity for Flasher

  • 20-pin 0.1" to 14-pin 0.05" ST
  • Compact, high-speed ST debugging
Contact us Compare Flasher adapters Documentation
  1. 1.Overview
  2. 2.Pinout & schematics
  3. 3.Suitable products
    1. 3.1.Flasher
    2. 3.2.J-Link

Overview

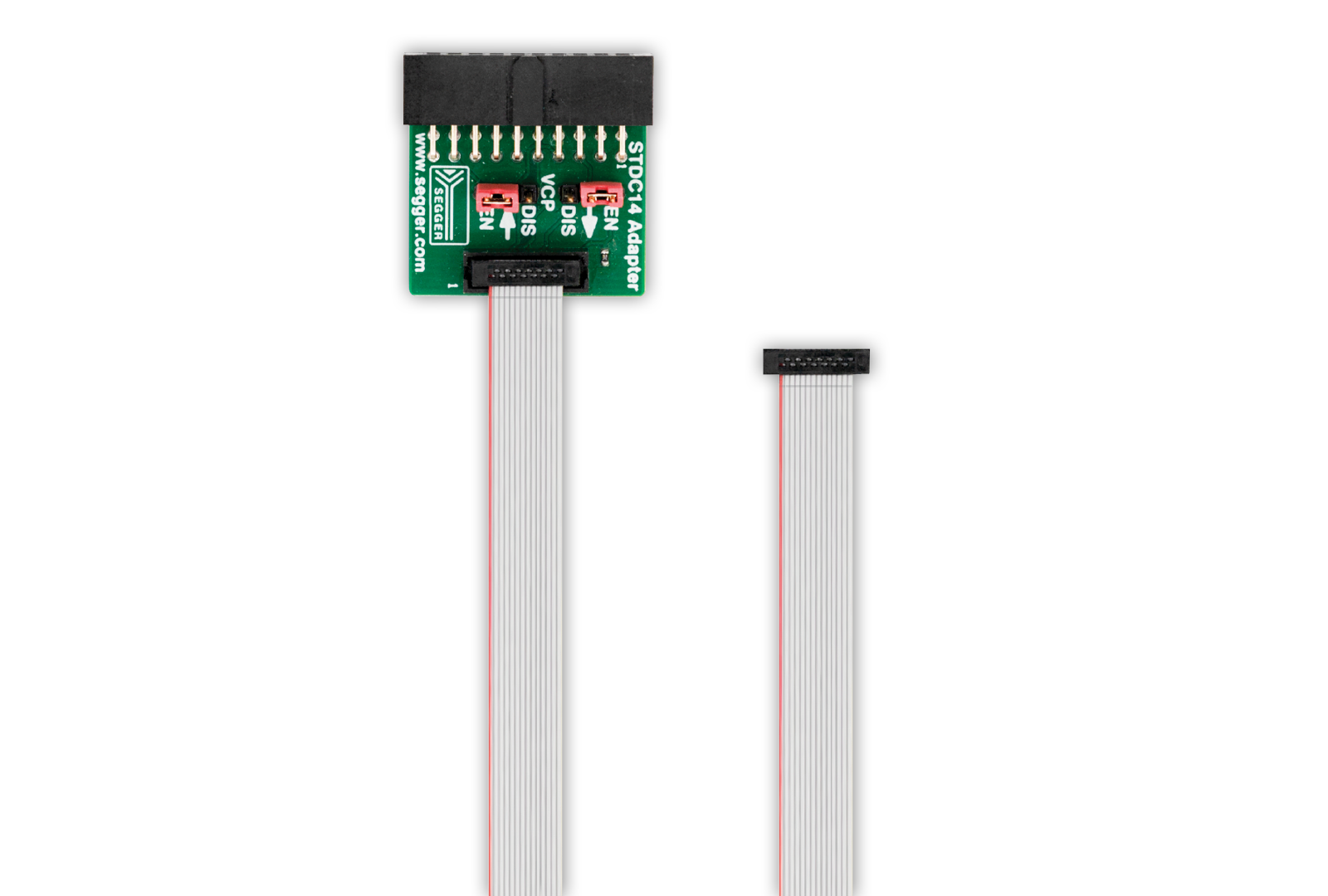

Image shows a STDC14 Adapter with a green circuit board featuring connection points and labels for "EN," "DIS," and "V0." A flexible ribbon cable is connected to the adapter, with the other end exposed and unconnected. The background is plain white.

The STDC14 Adapter adapts from the 20-pin 0.1'' Flasher and J-Link debug connector to the 14-pin 0.05'' connector defined by ST.

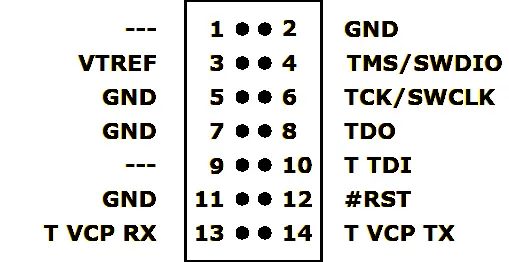

Pinout & schematics

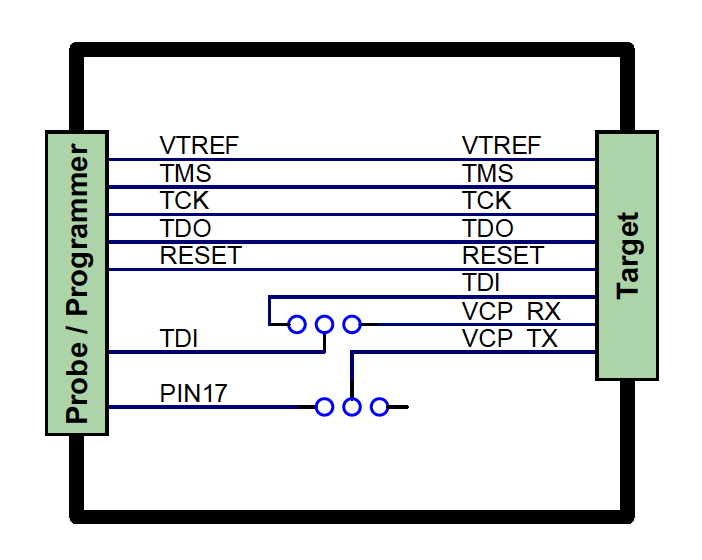

Schematic diagram illustrating connections between a programming probe and a target device. It shows labeled pins such as VTREF, TMS, TCK, TDI, and RESET, alongside additional points including PIN17 and VCP RX/TX, highlighting the wiring configuration for programming and communication.

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
