SEGGER Evaluation Software for Silicon Labs EFM32 Giant Gecko DK
SEGGER Evaluation Software
Included components:
| Product | Supported features |
|---|---|
BASE + AntiAliasing, Font Converter, Memory Devices, Simulation |
SEGGER Notifications
Subscribe to SEGGER Evaluation Software Notifications
Data Sheets

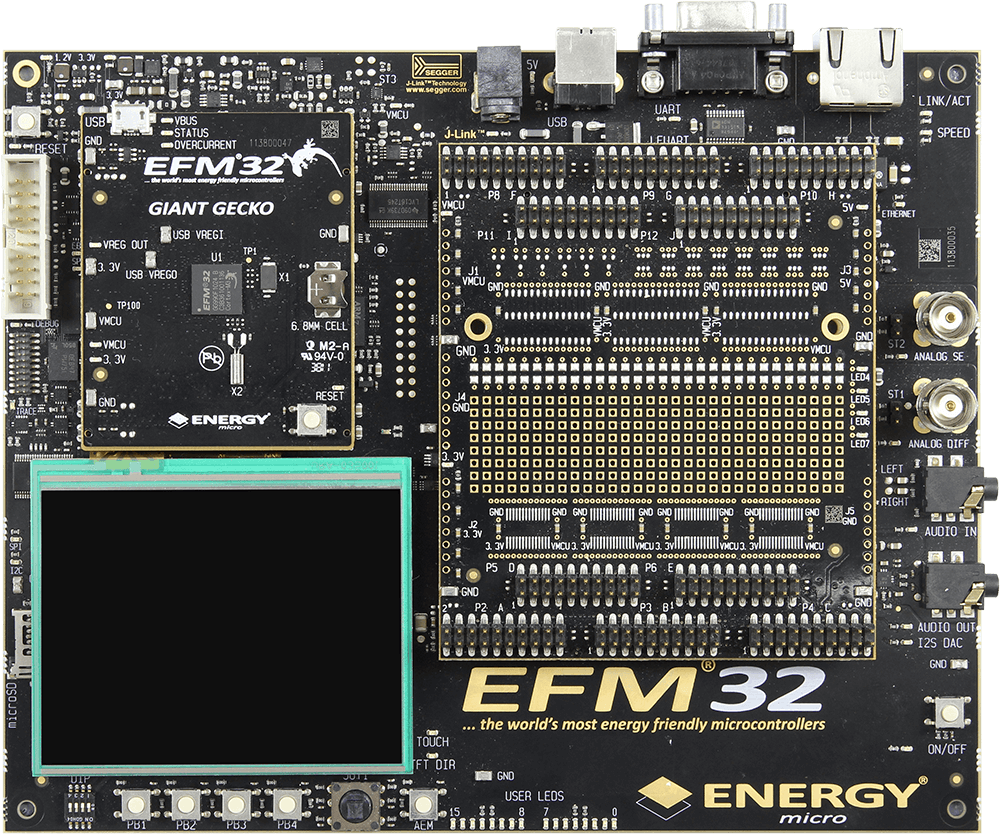

EFM32 Giant Gecko DK
- EFM32GG990F1024 MCU with 1 MB Flash and 128 KB SRAM.
- Advanced Energy Monitoring system for precise current tracking.
- Special hardware configuration for isolation of the MCU power domain.
- Replaceable prototyping board for quick custom application development.
- Full feature USB debugger / emulator with trace support and debug out functionality.
- 3.5-inch TFT-LCD 320x240 pixel RGB color display with resistive touch film.
- Smart Board controller handles configuration and signal routing.
- Single ended and differential ADC inputs.
- Line-in stereo audio input amplifier.
- Line-out stereo audio output amplifier and I2S DAC.
- 1 x RS232 Serial Port (DSUB-9).
- 10/100 Mbps Ethernet MAC+PHY with SPI interface
- MicroSD card reader (SPI mode).
- 2Meg x 16 (4MB) PSRAM with 70ns access time.
- 8Meg x 16 (16MB) NOR Flash with 90ns access time.
- 2Kb I2C EEPROM.
- Temperature sensor with I2C interface.
- 5 way joystick.
- 4 User buttons, 4-bit DIP switch and 16 user LEDs.
- USB Micro-AB (OTG) connector
- 6.8mm coin cell holder for backup-RTC
EFM32GG990F1024
- High Performance 32-bit processor @ up to 48 MHz
- Memory Protection Unit
- Wake-up Interrupt Controller
- Flexible Energy Management System
- 1024 KB Flash
- 128 KB RAM
- Up to 90 General Purpose I/O pins
- 12 Channel DMA Controller
- 12 Channel Peripheral Reflex System for autonomous inter-peripheral signaling
- Hardware AES with 128/256-bit keys in 54/75 cycles
- 3× Universal Synchronous/Asynchronous Receiver/Transmitter
- UART/SPI/SmartCard (ISO 7816)/IrDA (USART0)/I2S (USART1+USART2)
- Integrated LCD Controller for up to 8×36 segments
- External Bus Interface for up to 256 MB of external memory mapped space
- Ultra low power precision analog peripherals
- Ultra efficient Power-on Reset and Brown-Out Detector
- 2-pin Serial Wire Debug interface
- Single power supply 1.8 - 3.8 V
