5V Target Supply Adapter

The 5V Target Supply Adapter has a standard 20-pin 0.1" socket towards J-Link, or Flasher and a standard 20-pin 0.1" header on the target side.

Buy now
Compare J-Link adapters
Documentation
SEGGER Debug & Trace Probes

Overview

The 5V Target Supply Adapter provides a supply voltage of 5 V to the target board. It can directly be inserted between the J-Link, or Flasher and the debug cable maintaining a 1:1 connection of all debug signals.

The supply voltage to the target is provided through pin 19 of the debug cable. The supply voltage is fixed to 5 V.

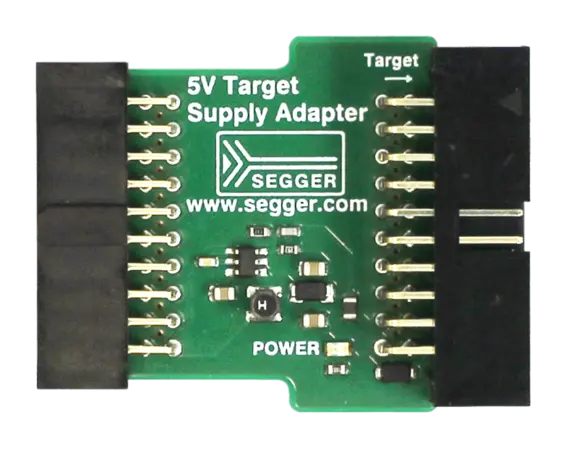

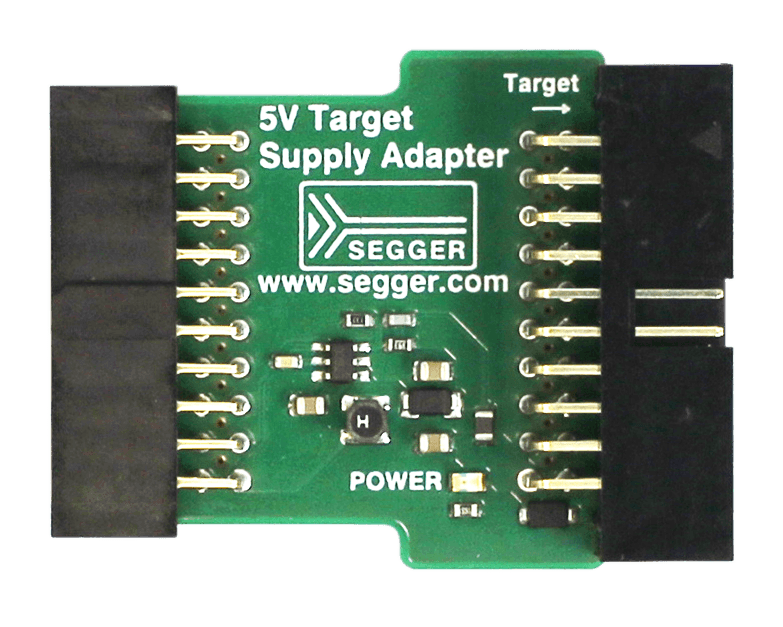

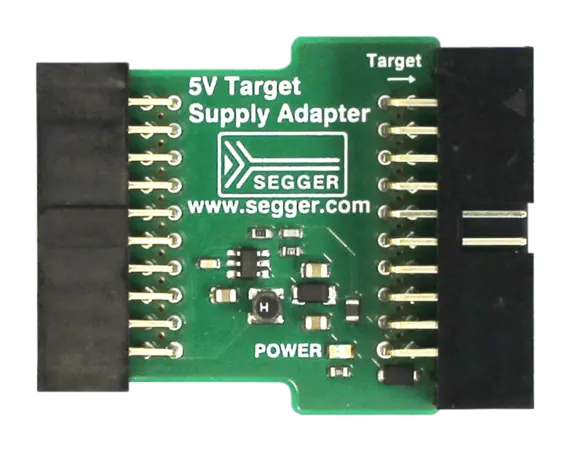

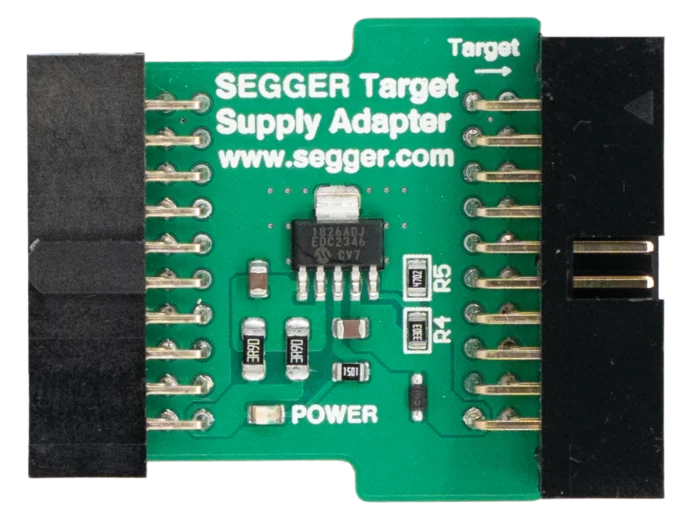

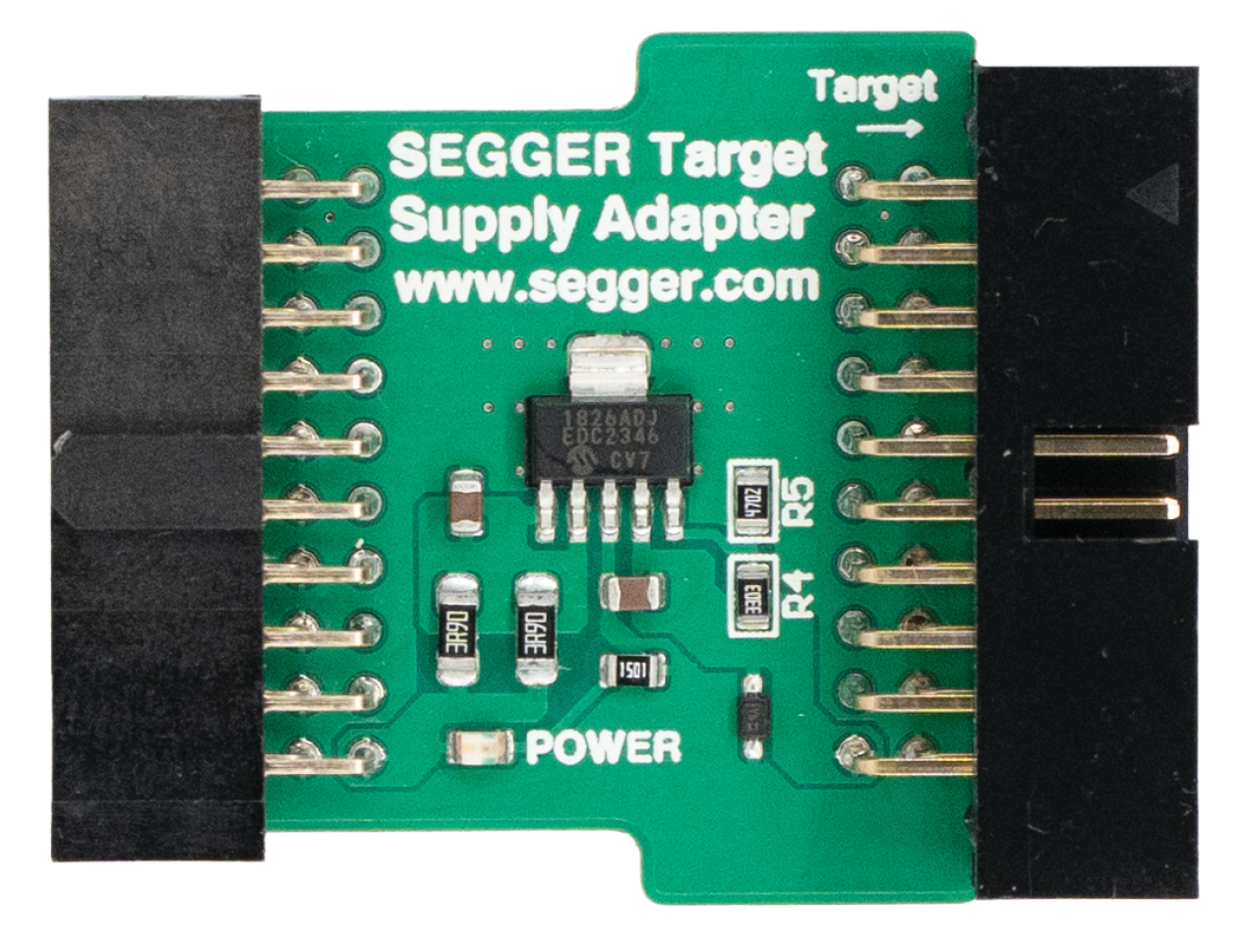

5V Target Supply Adapter
5V Target Supply Adapter

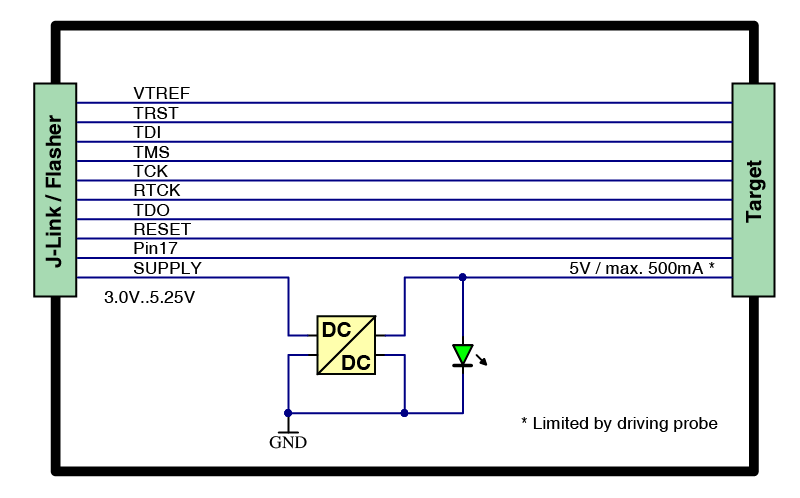

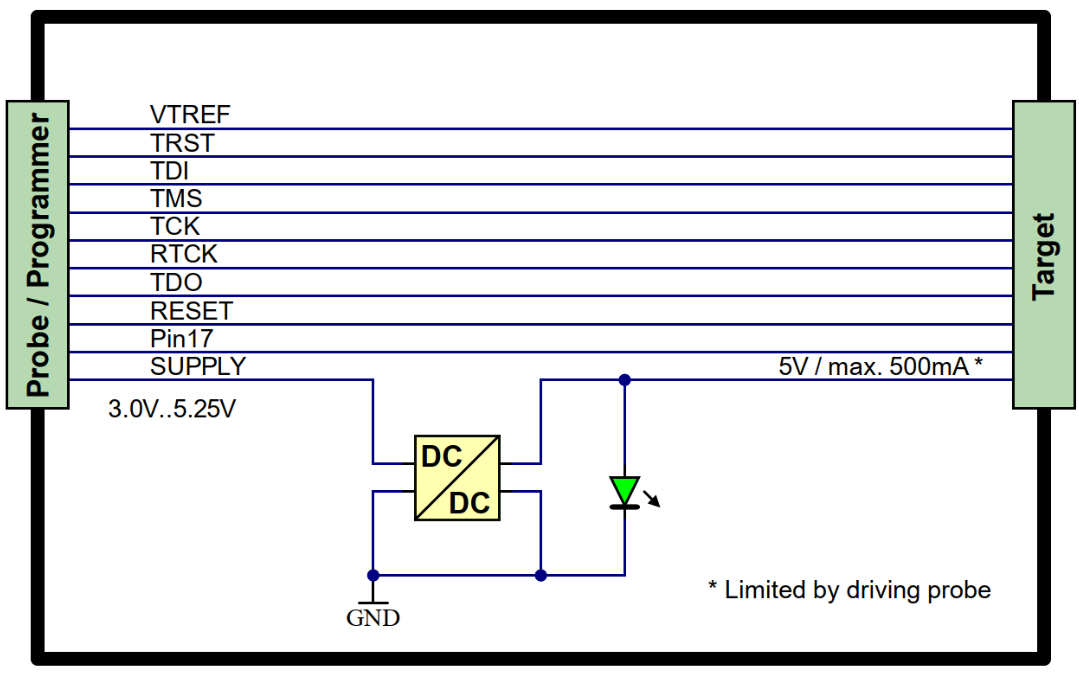

5V Target Supply Adapter Schematic
5V Target Supply Adapter Schematic

Specifications

  • Output voltage: 5 V +/- 5 %
  • Output current: 5 V / 500 mA
    Max. output current depends on power capability of driving unit. Operation on typical J-Link (4.5 V / 300 mA max.): 5 V / 220 mA.
  • Max. capacitive load: 220 uF
  • Ramp time (output): 2-6 ms
