Signal Smoothing Adapter

Seamless connectivity for J-Link

  • Improved JTAG signal integrity
  • Adjustable signal damping
Buy now Compare J-Link adapters Documentation
  1. 1.Overview
  2. 2.Example
  3. 3.Schematics
  4. 4.Suitable products
    1. 4.1.Flasher
    2. 4.2.J-Link

Overview

J-Link Signal Smoothing Adapter

The Signal Smoothing Adapter can be inserted between the J-Link debug probe or Flasher in-cicruit programmer and the debug target to overcome signal integrity issues. Depending on target load capacitance JTAG signals might be affected by overshoot and ringing. In this case user adjustable series resistors (default 47R) allow for damping critical signal rise/fall times leading to improved signal integrity.

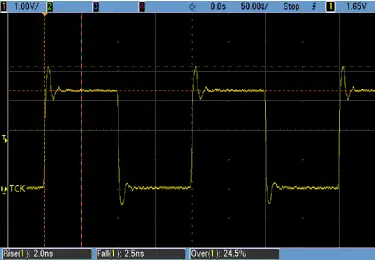

J-Link Signal Smoothing Adapter Ex1

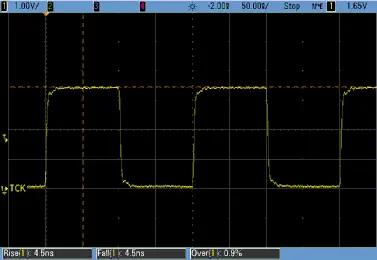

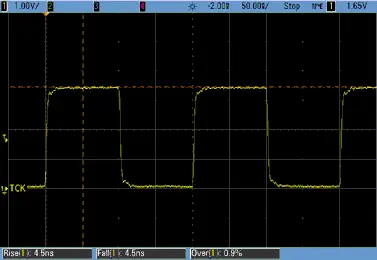

J-Link Signal Smoothing Adapter Ex2

Example

Target with minimum capacitive load for JTAG signals (< 3 pF), connected via 60 cm standard flat ribbon cable.

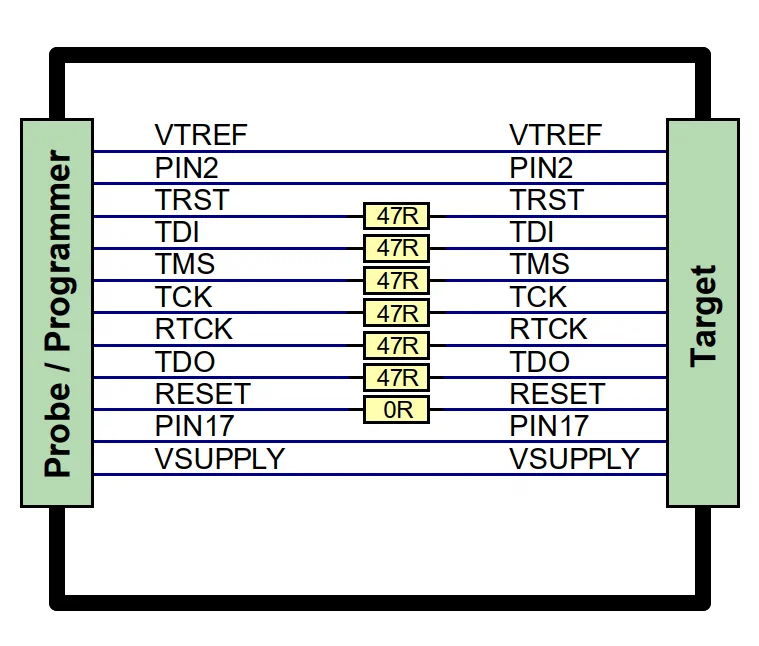

Diagram showing the connections between a Probe/Programmer and a Target. Key labeled connections include VTREF, TDI, TMS, TCK, TDO, RESET, and VSUPPLY, with resistances of 47 ohms indicated in multiple places and a 0 ohm connection for one pin.

Schematics

Suitable products

Flasher

A handheld device labeled "Flasher" from SEGGER, primarily gray with blue rubber edges. It features three status indicators: "Ready" (OK), "Not ready," and "Fail," along with a "PROG" button. This device is used for programming and debugging electronics.

J-Link

Image of a J-Link debugging device from SEGGER. The device has a rectangular shape with a black casing and a silver panel featuring the "J-Link" logo and SEGGER branding. It includes several buttons and indicators for user interaction.
