SiFive-ARTY Trace Adapter

The SiFive-ARTY Trace Adapter allows debug and trace connections between the J-Trace and the ARTY board running SiFive RISC-V core bitstreams.

Buy now
Compare J-Trace models
Documentation
SEGGER Debug & Trace Probes
  1. 1.Overview
  2. 2.Pinouts
    1. 2.1.JD/JTAG
    2. 2.2.JC/Trace

Overview

The SiFive-ARTY Trace Adapter allows debug and trace connections between the J-Trace and the ARTY board running SiFive RISC-V core bitstreams.
The ARTY board provides several identical headers where the JD header is used as the debug connector and the JC header as the trace connector when running SiFive RISC-V bitstreams on the ARTY board that have trace enabled.

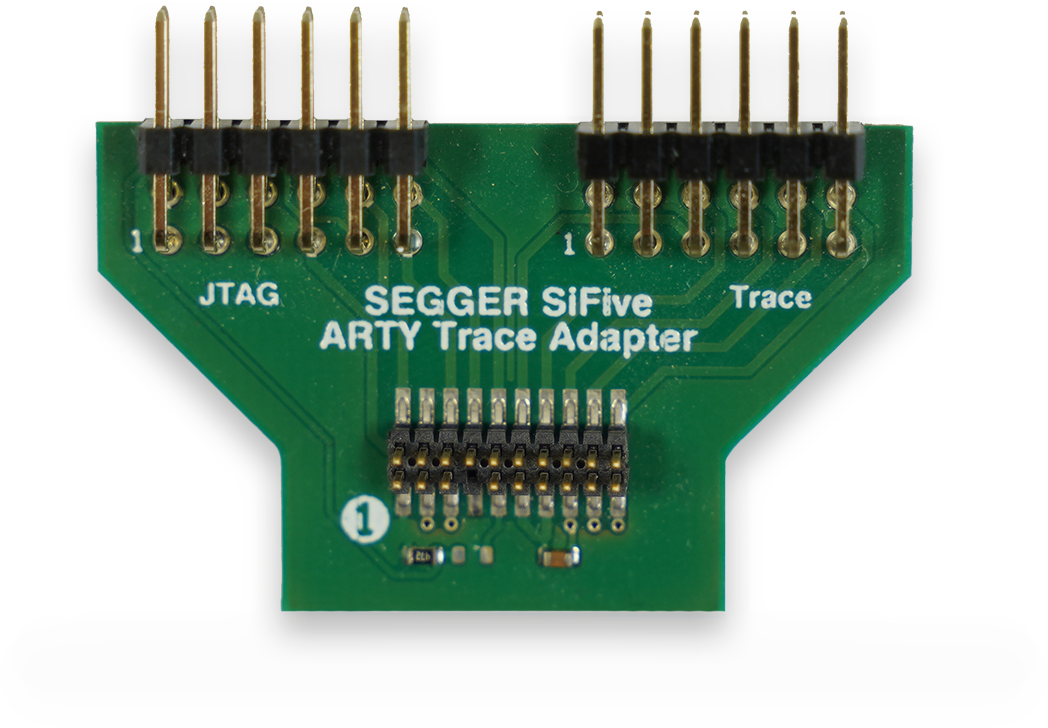

SiFive-ARTY Trace Adapter

Pinouts

JD/JTAG

PinSignal
1NC
2VTref / VDD
3GND
4GND
5NC
6NC
7TCK
8RESET
9TRST
10TMS
11TDO
12TDI

JC/Trace

PinSignal
1NC
2NC
3GND
4GND
5TRACECLK
6TRACEDATA[0]
7NC
8TRACEDATA[1]
9NC
10TRACEDATA[2]
11NC
12TRACEDATA[3]
