SEGGER Evaluation Software for Atmel SAMA5D3 Xplained

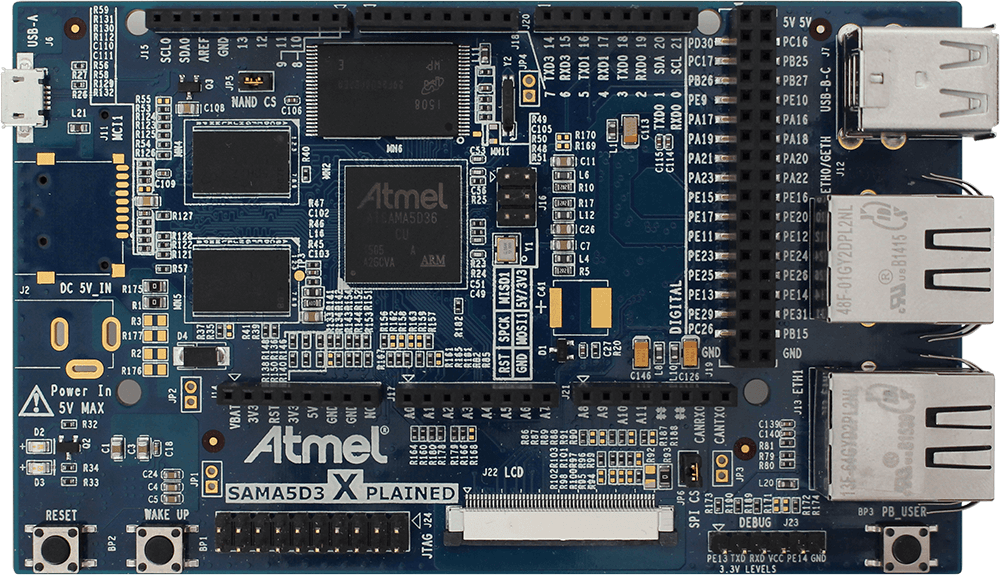

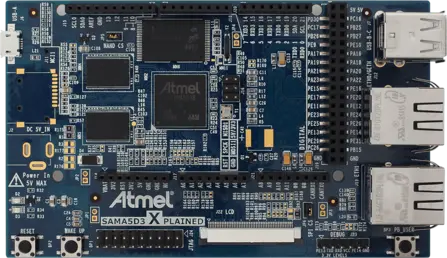

Atmel SAMA5D3 Xplained Board

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed

emCrypt

PRO

emFile

BASE + NAND, RAMDisk

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client

emSSH

Secure Shell software library

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Bulk, CDC, HID, IP-over-USB, MSD, MTP

emUSB-Host

BASE

emWeb

Web Server

Download SEGGER Evaluation Software for Atmel SAMA5D3 Xplained and SEGGER Embedded Studio

Other downloads

Download embOS-Classic for ARM 7/9/11/XScale/Cortex-A/R and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

Atmel SAMA5D3 Xplained

  • Two high-speed memory card host
  • 1 x SD card slot (can also read eMMC cards)
  • 1 x micro SD card slot (optional)
  • 256 MBytes DDR2
  • 256 MBytes NAND Flash
  • 1 x 50 header LCD connector
  • One 1-Wire EEPROM
  • One power LED
  • 1 x Gigabit Ethernet
  • 1 x 10/100 MHz Ethernet
  • 2 x USB High-speed 2.0 Host
  • 1 x USB High-speed 2.0 Host/Device
  • LCD TFT Controller with overlay, alpha-blending, rotation, scaling and color space conversion
  • 1 x Bridge USB/UART DBGU
  • On-board Lithium Battery for CMOS backup
  • 1x 20 pin JTAG Debug header
  • System power: +5V DC ±5%
  • Backup: +1.65V to 3.6V DC
  • RoHS compliant
  • CE and FCC Part 15 compliant

SAMA5D36

  • ARM Cortex-A5 Processor with ARM v7-A Thumb2 Instruction Set
  • CPU Frequency up to 536 MHz
  • 160 Kbyte Internal ROM
  • 128 Kbyte Internal SRAM
  • 39 DMA Channels including two 8-channel 64-bit Central DMA Controllers
  • 64-bit Advanced Interrupt Controller
  • LCD TFT Controller with Overlay, Alpha-blending, Rotation, Scaling and Color Space Conversion
  • Three HS/FS/LS USB Ports with On-Chip Transceivers
  • One Device Controller
  • One Host Controller with Integrated Root Hub (3 Downstream Ports)
  • One 10/100/1000 Mbps Gigabit Ethernet MAC Controller (GMAC) with IEEE1588 support
  • One 10/100 Mbps Ethernet MAC Controller (EMAC)
  • Two CAN Controllers with 8 Mailboxes, fully compliant with CAN 2.0 Part A and 2.0 Part B
  • Four USARTs (ISO7816, IrDA, RS-485, SPI, Manchester and Modem Modes)
  • Two UARTs
  • Three High Speed Memory Card Hosts (eMMC 4.3 and SD 2.0)
  • Three Two-wire Interface up to 400 Kbit/s supporting I2C Protocol and SMBUS
  • One 4-channel 16-bit PWM Controller
  • One 12-channel 12-bit Analog-to-Digital Converter with Resistive Touch-Screen function
  • SHA: Supports Secure Hash Algorithm (SHA1, SHA224, SHA256, SHA384, SHA512)
  • Memory Management Unit
  • AES: 256-bit, 192-bit, 128-bit Key Algorithm
  • TDES: Two-key or Three-key Algorithms
  • Atmel Secure Boot Solution
  • Five 32-bit Parallel Input/Output Controllers
