SEGGER Evaluation Software for NXP LPCXpresso 4367

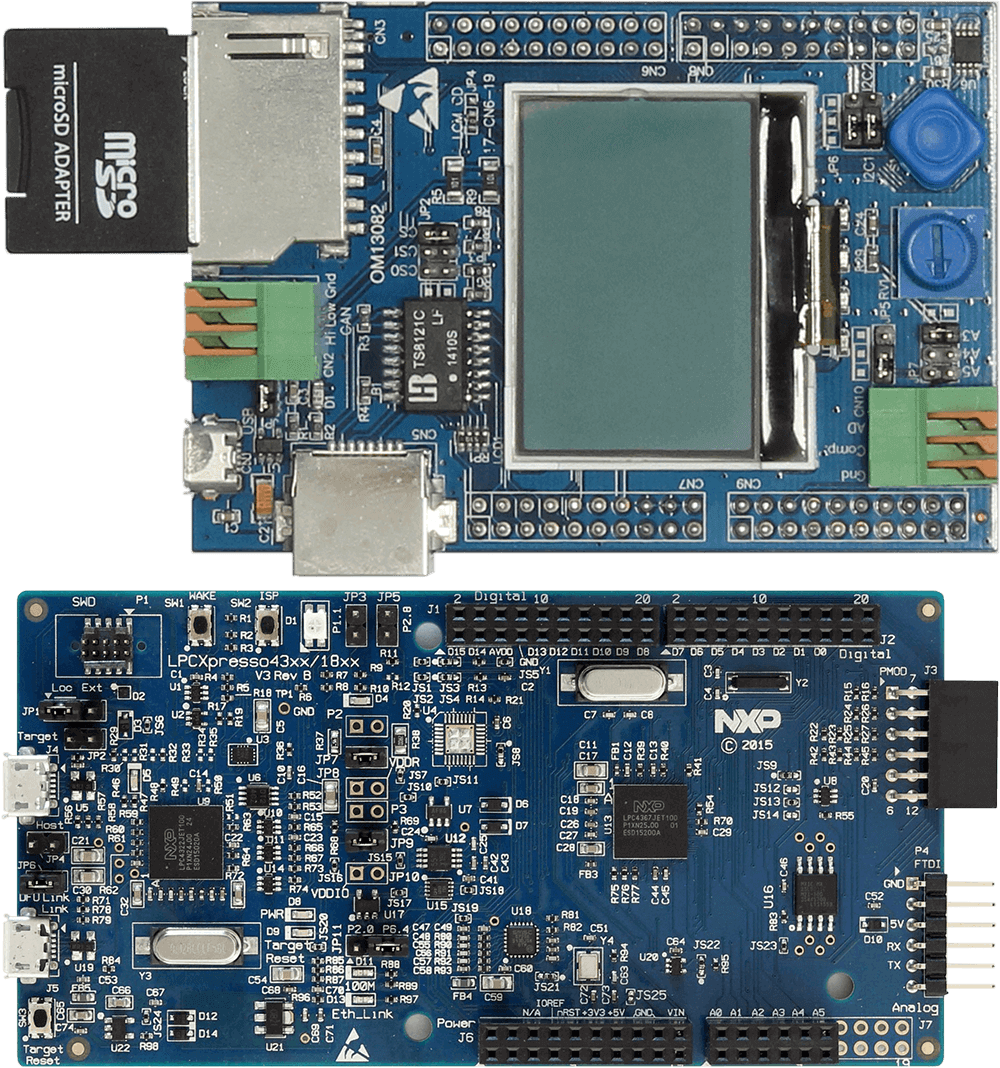

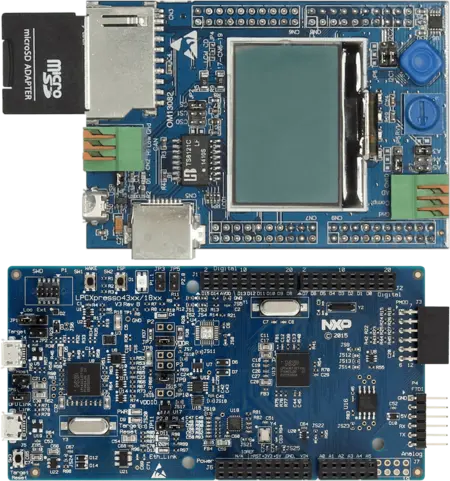

NXP - LPCXpresso V3 REVB, evaluation board top and bottom

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed

emCrypt

PRO

emFile

BASE + Encryption, FAT, FAT LFN, Journaling, MMC/SD, NOR, RAMDisk

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket

emSecure

emSecure-RSA, emSecure-ECDSA

emSSH

Secure Shell software library, Secure Copy

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Audio, Bulk, CDC, DFU, HID, MSD, MSD-CDROM, MTP, Printer Class, IP-over-USB component, VirtualMSD, Video, Target Driver for NXP LPC43xx

emWeb

Web Server

IoT Toolkit

HTTP Client, JSON Parser

Download SEGGER Evaluation Software for NXP LPCXpresso 4367 and SEGGER Embedded Studio

Other downloads

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

NXP LPCXpresso 4367 Eval Board

  • LPC4367 dual-core (M4F and M0+) MCU running at up to 204 MHz
  • On-board high-speed USB based debug probe with CMSIS-DAP and LPCXpresso IDE Redlink protocol options, can debug the on-board LPC4367 or external target
  • Support for external debug probes
  • Tri-color LED
  • Target Reset, ISP and WAKE buttons
  • USB, UART and QSPI flash boot option configuration options
  • Expansion options based on Arduino UNO R3 and Pmod™, plus additional expansion port pins
  • On-board 1.8/3.3 V or external power supply options
  • On-board Ethernet PHY (output available at expansion connectors)
  • High speed USB A/B connector for host or slave operation
  • 8 Mb Macronix quad SPI flash
  • UART, I²C and SPI port bridging from LPC4367 target to USB via the on-board debug probe
  • FTDI UART connector

NXP LPC4367 MCU

  • ARM Cortex-M4 processor running at frequencies of up to 204 MHz.
  • ARM Cortex-M0 co-processor running at frequencies of up to 204 MHz.
  • Up to 1 MB on-chip dual bank flash memory with flash accelerator.
  • 154 kB SRAM for code and data use.
  • 64 kB ROM containing boot code and on-chip software drivers.
  • Quad SPI Flash Interface (SPIFI) with four lanes.
  • 10/100T Ethernet MAC with RMII and MII interfaces.
  • One High-speed USB 2.0 Host/Device/OTG interface.
  • One High-speed USB 2.0 Host/Device interface.
  • One 550 UART with DMA support.
  • Three 550 USARTs with DMA and synchronous mode support.
  • Up to two C_CAN 2.0B controllers with one channel each.
  • Two SSP controllers with FIFO and multi-protocol support.
  • One SPI controller.
  • One Fast-mode Plus I²C-bus interface.
  • One standard I²C-bus interface.
  • Two I²S interfaces.
  • External Memory Controller (EMC) supporting external SRAM, ROM, NOR flash, and SDRAM devices.
  • LCD controller with DMA support.
  • Secure Digital Input Output (SD/MMC) card interface.
  • Eight-channel General-Purpose DMA controller.
  • Up to 164 General-Purpose Input/Output (GPIO) pins.
  • Four general-purpose timer/counters with capture and match capabilities.
  • Ultra-low power Real-Time Clock (RTC).
  • One 10-bit DAC with DMA support.
  • Two 10-bit ADCs with DMA support.
  • Unique ID for each device.
