MIPI-60 Adapter
MIPI-60 Adapter target interface

Overview

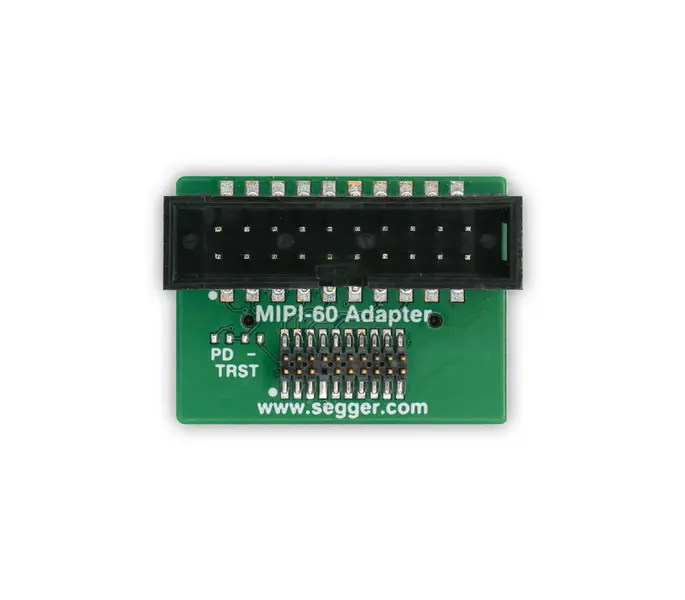

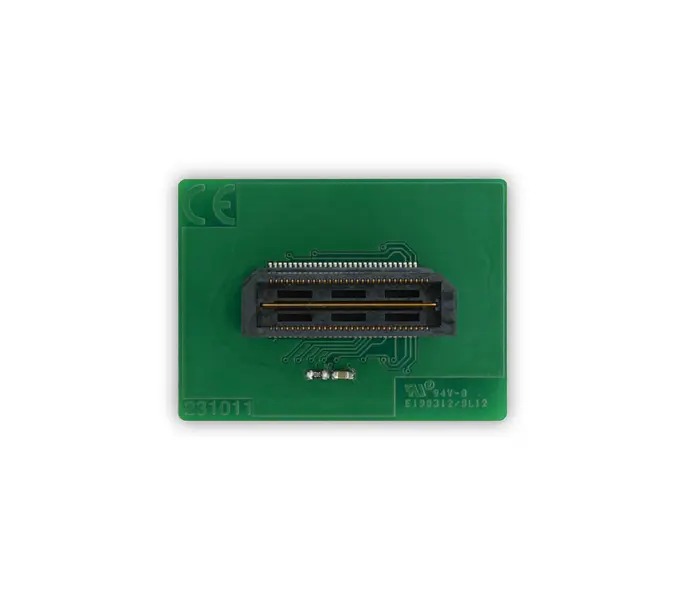

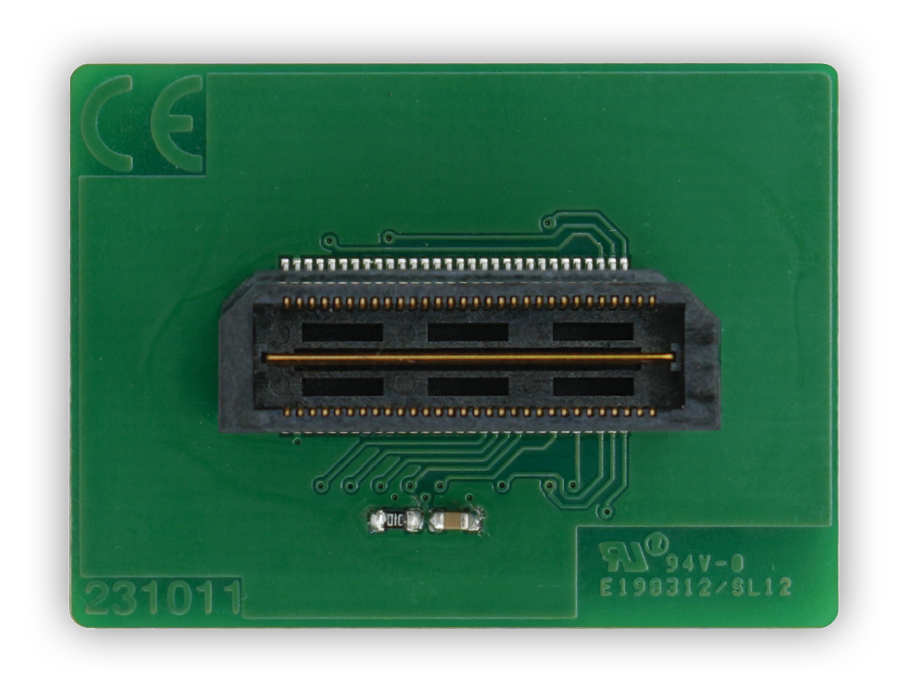

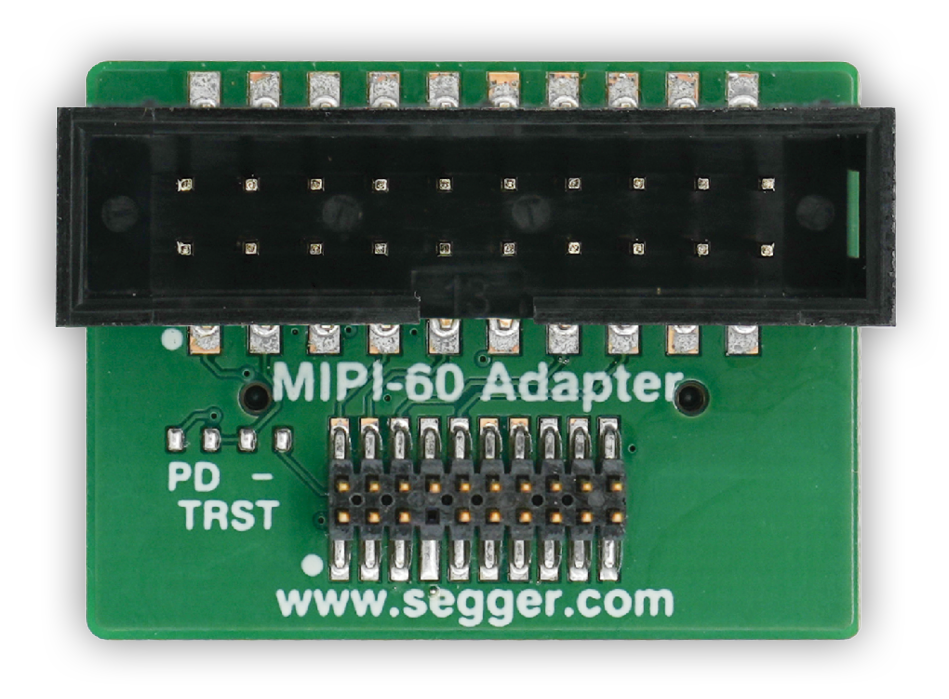

The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.

  Download schematics

Pinout

J-Trace Pinout
J-Link/J-Trace JTAG/SWD 20-Pin Arm Adapter pinout
Pin
Signal
1
VTREF
2
TMS
3
TCK
4
TDO
5
TDI
6
RESET
7
RICK
8
TRST PD
9
TRST
10
Not connected
11
Not connected
12
VTREF
13
TRC CLK
14
Not connected
15
GND
16
GND
17
TRC CTL
18
Not connected
19
TRC DAT0
20
Not connected
21
TRC DAT1
22
Not connected
23
TRC DAT2
24
Not connected
25
TRC DAT3
26-56
Not connected
57
GND
58
GND
59
Not connected
60
Not connected
