SEGGER Evaluation Software for Atmel SAME70 Xplained

Atmel - Same70 Xplained

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed

emCrypt

PRO

emFile

BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, SD/SDHC/SDXC/MMC

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, Target driver for CADENCE, emUSB-Device IP-over-USB driver

emSecure

emSecure-RSA, emSecure-ECDSA

emSSH

Secure Shell software library, Secure Copy

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Target driver for Microchip SAMV7x

emWeb

Web Server

IoT Toolkit

HTTP Client, JSON Parser

Download SEGGER Evaluation Software for Atmel SAME70 Xplained Pro and SEGGER Embedded Studio

Other downloads

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

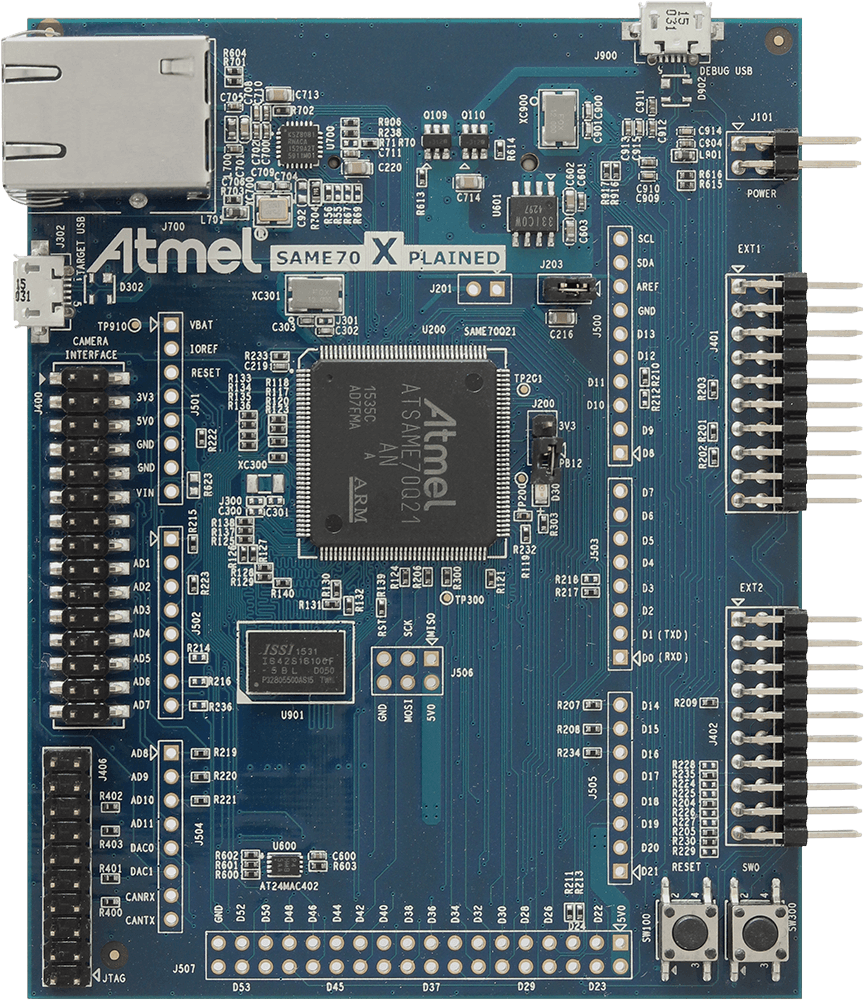

Atmel SAME70 Xplained

  • ATSAME70Q21 (144-lead LQFP package) ARM Cortex-M7 Processor.
  • One AT24MAC402 EEPROM
  • One IS42S16100E 16 Mb SDRAM
  • One 4-bit SD card connector
  • One Micro-AB USB device
  • One Micro-AB USB for EDBG debug interface
  • Camera Extension Header for connection with ISI Modules (not populated)
  • One Ethernet PHY (RMII 10/100)
  • One JTAG interface connector
  • One ETM Trace interface connector (not populated)
  • Three Atmel XPRO Extension Headers
  • Arduino R3 compatible set of headers (not populated)
  • GPIO,TWI, SPI, USART, UART and Audio interfaces are accessible via these headers
  • 5V from USB target, from USB Debug or from Arduino shield
  • On-board power regulation is performed by a 3.3V LDO
  • Reset and free user pushbutton
  • One green user LED

ATSAME70Q21

  • ARM® Cortex®-M7 running up to 300MHz
  • 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
  • Single- and double-precision HW Floating Point Unit (FPU)
  • Memory Protection Unit (MPU) with 16 zones
  • DSP Instructions, Thumb®-2 Instruction Set
  • Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
