SEGGER Evaluation Software for Atmel SAMV71 Xplained Ultra

  1. 1.Data Sheets
    1. 1.1.ATSAMV71Q21
    2. 1.2.ATSAME70Q21

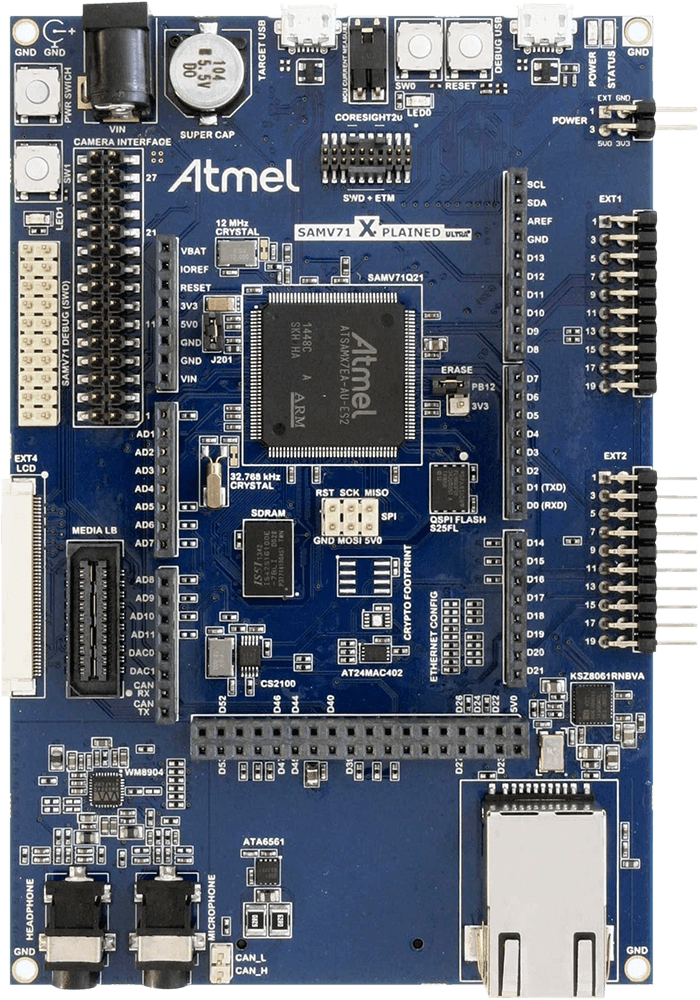

Microchip - Atmel samv71 Xplained Ultra

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed, emCompress-ToGo

emCrypt

PRO

emFile

BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, NOR

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, Target driver for CADENCE

emSecure

emSecure-RSA, emSecure-ECDSA

emSSH

Secure Shell software library, Secure Copy

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Target driver for Microchip SAMV7x

emUSB-Host

BASE + Bulk, CCID, CDC, FTDI UART, LAN, MSD, MTP, Printer Class, Target driver for ATSAMx7

emWeb

Web Server

IoT Toolkit

HTTP Client, JSON Parser

Download SEGGER Evaluation Software for Atmel SAMV71 Xplained Ultra and SEGGER Embedded Studio

Other downloads

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

ATSAMV71Q21

  • One mechanical reset button
  • One power switch button
  • Two mechanical user pushbuttons
  • Two yellow user LEDs
  • Supercap backup
  • 12.0MHz crystal
  • 32.768kHz crystal
  • 2MB SDRAM
  • 2MB QSPI Flash
  • Built in Ethernet MAC with external IEEE 802.3az 10Base-T/100Base-TX Ethernet RMII PHY
  • AT24MAC402 256KB EEPROM with EUI-48 address
  • ATA6561 CAN Transceiver
  • SD Card connector with SDIO support
  • Camera interface connector
  • MediaLB connector
  • Two Xplained Pro extension headers
  • One Xplained Pro LCD header
  • CoreSight 20 connector for 4-bit ETM
  • Arduino Due based shield connectors
  • External debugger connector
  • USB interface, device and host mode
  • External power input (5-14V)
  • USB powered

ATSAME70Q21

  • ARM® Cortex®-M7 running up to 300MHz
  • 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
  • Single- and double-precision HW Floating Point Unit (FPU)
  • Memory Protection Unit (MPU) with 16 zones
  • DSP Instructions, Thumb®-2 Instruction Set
  • Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)
