SEGGER Evaluation Software for TI TM4C129X

Product	Supported features
emPower OS
embOS	Core + Profiling
emCompress	emCompress-Embed, emCompress-ToGo
emCrypt	PRO
emFile	BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, SD/SDHC/SDXC/MMC, NOR
emModbus	Master + Slave
emNet	BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, NTP Client, SMTP Client, SNMP Agent, SNMP Agent SNMPv3 USM, SNTP Client, UPnP, WebSocket, emNet Synopsys
emSecure	emSecure-RSA, emSecure-ECDSA
emSSH	Secure Shell software library, Secure Copy
emSSL	Secure Sockets Layer
emUSB-Device	BASE + Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, emUSB-Device target driver TI OMAP-L138/TI TM4Cxx
emWeb	Web Server
IoT Toolkit	HTTP Client, JSON Parser

Download SEGGER Evaluation Software for TI TM4C129X and SEGGER Embedded Studio

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

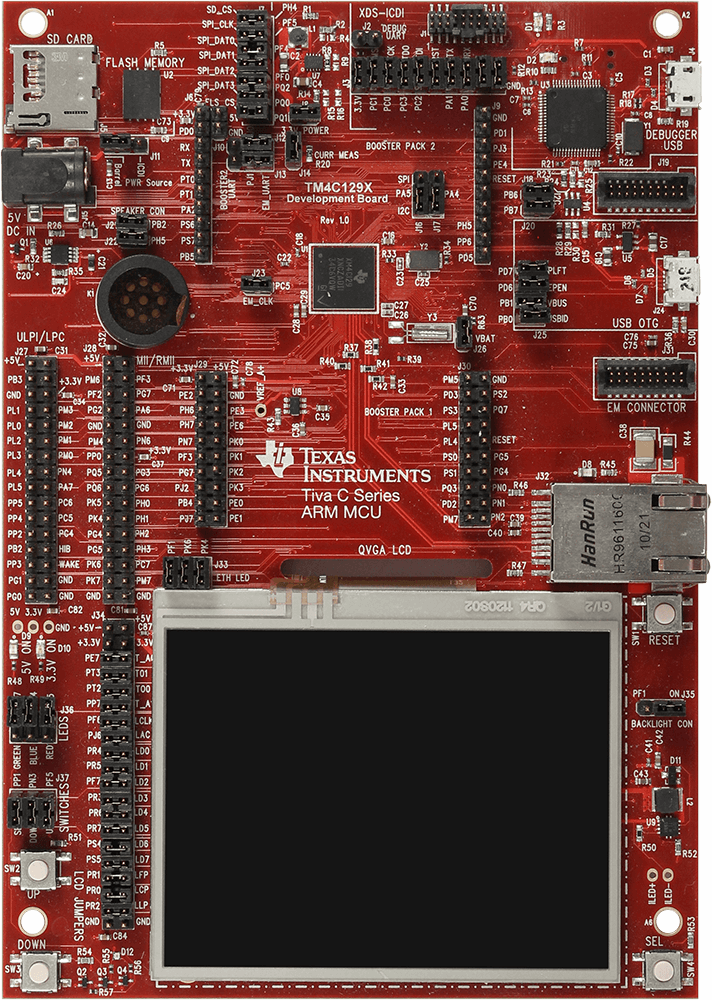

Tiva TM4C129X Microcontroller
QVGA color display with resistive touch screen
10BASE-T/100BASE-TX controller with internal PHY
USB Micro-AB connector for Host/Device/OTG
MicroSD card slot
3 navigation buttons
User tricolor LED
Precision 3.0V reference
Quad SSI to 512 Mbit flash
BoosterPack XL connector for expansion
BoosterPack connector for expansion
EM connector for wireless applications
Available I/O brought out to headers on 0.1" grid
ULPI USB external PHY (for high speed USB 2.0)
RMII and MII external Ethernet PHY
EPI, Host bus 16/8
Tiva In-Circuit Debug Interface (ICDI)
Standard 20-pin JTAG header without ETM functionality (debug in and out capable)
Shunt resistors to measure current on V DD V BAT V DDA and V REF to the TM4C129X
Reset button
