SEGGER Evaluation Software for Infineon XMC4500 Relax Kit

Infineon - xmc4500 relax kit

SEGGER Evaluation Software

Included components:

ProductSupported features
emPower OS

embOS

Core + Profiling

emCompress

emCompress-Embed, emCompress-ToGo

emCrypt

PRO

emFile

BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk, SD/SDHC/SDXC/MMC

emModbus

Master + Slave

emNet

BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, NTP Client, SMTP Client, SNMP Agent, SNTP Client, UPnP, WebSocket, XMC4500_Relax

emSecure

emSecure-RSA, emSecure-ECDSA

emSSH

Secure Shell software library, Secure Copy

emSSL

Secure Sockets Layer

emUSB-Device

BASE + Audio, Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Video, emUSB-Device target driver Infineon XMC45xx

emWeb

Web Server

IoT Toolkit

HTTP Client, JSON Parser

Download SEGGER Evaluation Software for XMC4500 Relax Kit and SEGGER Embedded Studio

Other downloads

Download Binary demo applications + flash loader (No toolchain required)

Download embOS-Classic for Cortex-M and SEGGER Embedded Studio

DownloadEmbedded Studio

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Data Sheets

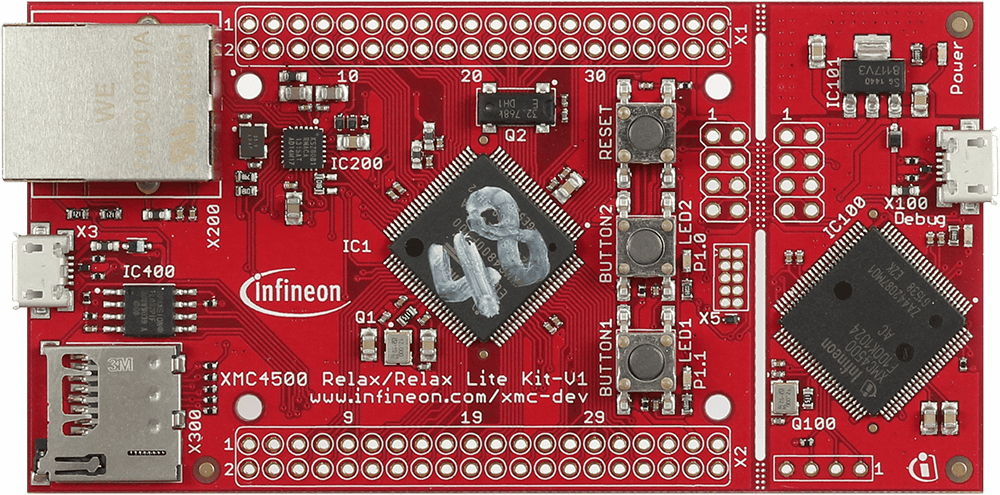

XMC4500 Relax Kit

  • Detachable on-board debugger (second XMC4500)
  • USB OTG Device support via micro USB connector
  • Powersupply over Micro-USB
  • ESD and reverse current protection
  • Reset push button
  • 2 x user button
  • 2 x user LED
  • 4 x SPI-Master, 3x I2C, 3 x I2S, 3 x UART, 2 x CAN, 17 x ADC
  • (12 bit), 2 x DAC, 31x PWM mapped on 2 Pin Headers 2 x 20 0.1”
  • Ethernet PHY and RJ45 jack
  • Real Time Clock crystal
  • 32 Mbit Quad-SPI Flash
  • MicroSD card slot

XMC4500

  • ARM Cortex-M4 with floating point unit (FPU), single-cycle DSP MAC, 80-120 MHz CPU frequency
  • 1 MB embedded Flash with 22 ns access time and error correction unit
  • 12-channel DMA (XMC4500)
  • Comprehensive set of timers, Delta sigma Demodulator, Position Interface, PWM with emergency shutdown and ADC trigger, Quadrature Encoder Interface
  • Up to 4x 12-bit ADC achieving 4 Mega samples per second (interleaved mode)
  • 2x 12-bit DAC
  • 6 multi-functional serial interface modules configurable to SPI, I2C, I2S, UART
  • 160 kB embedded RAM
  • 3x CAN
  • External bus interface supporting SDRAM, SRAM, NOR-/NAND-Flash and memory-mapped IO devices (e.g. LCD)
  • SD/MMC interface
  • Touch interface & LED Matrix
  • Battery-backed real-time clock with calendar function and time-based or external wake-up capabilities
  • Extended temperature range up to 125 °C ambient temperature
