    Price list — J-Link

    The J-Link debug probes with their outstanding performance, robustness, and ease of use are the market leading debug probes today.

    Buy now
    Contact us
    SEGGER Debug & Trace Probes
    1. 1.J-Link models
      1. 1.1.J-Link OB — General purpose use
      2. 1.2.J-Link OB — Evaluation board use
    2. 2.Basic Support
    3. 3.Company Support
    4. 4.Extended Coverage
    5. 5.Accessories
    6. 6.Adapters
    7. 7.Isolators
    8. 8.Tools

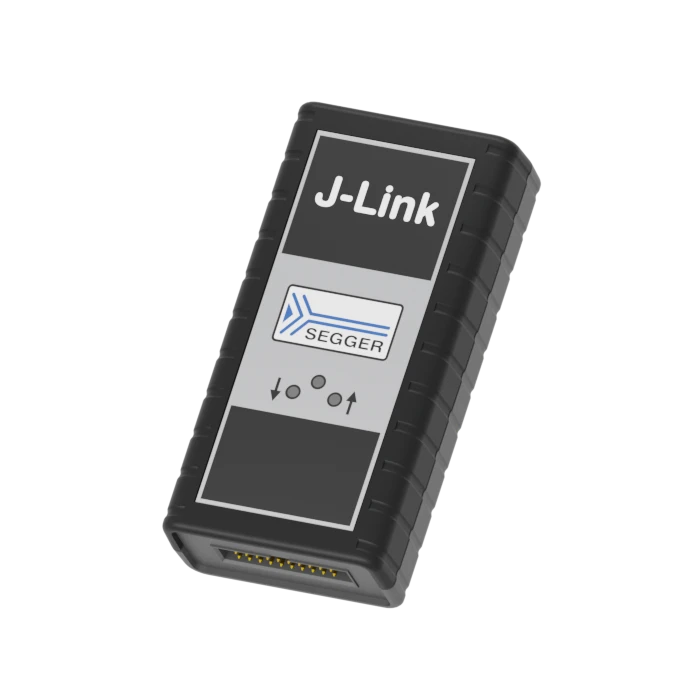

    J-Link models

    Every J-Link comes with one year of Basic Support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic Support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase via web shop (please see price list) or upon request. Adding it at a later date is not possible.

    If your device is no longer covered by Basic Support, you can renew Basic Support for one additional year (+12 months). This option is available upon request as long as we maintain the version of your device.

    Please note: Support is granted for registered products only.

    If an organization owns a large amount of SEGGER hardware, it may make sense to purchase Company Support. This enables engineers to receive assistance, regardless of the support status of their individual device.

    Product icon Extended Coverage
    Part #ItemDescriptionPrice [EUR]
    8.12.28J-Link PRO PoEJ-Link PRO PoE is SEGGER's specialized programming and debug probe for creating test farms.

    Ethernet-PoE driven debug probe

    Up to 3.0 MByte/sec download speed

    PRO Software Package includes:
    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI
    Included accessories:
    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    1,198.--

      Web Shop

    8.12.00J-Link PRO

    The universal debug probe.

    Hi-Speed USB 2.0 and Ethernet driven debug probe

    Up to 4.0 MB/s download speed

    PRO Software Package includes:

    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI

    Included accessories:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    998.--

      Web Shop

    8.16.28J-Link ULTRA+

    The ultra fast debug probe.

    Hi-Speed USB 2.0 driven debug probe

    Up to 4.0 MB/s download speed

    PLUS Software Package includes:

    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI

    Included accessories:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    798.--

      Web Shop

    8.14.28J-Link WiFi

    The JTAG/SWD debug probe with WLAN/WiFi interface.

    Hi-Speed USB 2.0 driven debug probe

    • Up to 1.0 MB/s download speed

    WiFi Software Package includes:

    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI

    Included accessories:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    998.--

      Web Shop

    8.08.28J-Link PLUS Classic

    The JTAG/SWD debug probe with USB interface.

    Hi-Speed USB 2.0 driven debug probe

    Up to 1.0 MB/s download speed

    PLUS Software Package includes:

    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI

    Included accessories:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    598.--

      Web Shop

    8.19.28J-Link PLUS Compact

    The JTAG/SWD debug probe with USB interface.

    Hi-Speed USB 2.0 driven debug probe

    • Compact form factor
    • Up to 1.0 MB/s download speed

    PLUS Software Package includes:

    • J-Flash / J-Flash SPI
    • J-Link Unlimited Flash Breakpoints
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI

    Included accessories:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    598.--

      Web Shop

    8.08.00J-Link BASE Classic

    The JTAG/SWD debug probe with USB interface.

    Hi-Speed USB 2.0 driven debug probe

    • Compact form factor
    • Up to 1.0 MB/s download speed

    Package includes:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    398.--

      Web Shop

    8.19.00J-Link BASE Compact

    The JTAG/SWD debug probe with USB interface.

    Hi-Speed USB 2.0 driven debug probe

    • Compact form factor
    • Up to 1.0 MB/s download speed

    Package includes:

    • USB cable
    • .1" 20-pin ribbon cable (18 cm)

    Includes free software updates and 1 (one) year of email support

    398.--

      Web Shop

    8.08.91J-Link EDU Mini

    Debug probe in reduced form factor for educational purposes

    Package includes:

    • J-Link EDU Mini
    • .05" 19-pin target cable
    • .05" 9-pin target cable
    Available at our authorised distributors

    J-Link OB — General purpose use

    Part #ItemDescriptionPrice [EUR]
    8.25.00Starter Kit:
    J-Link OB Fixed Single Target – Internal use (FSTI)

    J-Link OB debug and program for a specified target device soldered onto same target board for internal use only — commercial use is permitted.

    The starter kit contains the following components:

    • 5 OB licenses for initial evaluation purpose only
    • J-Link BASE
    • 6-Pin Needle Adapter
    • Documentation which includes schematic for selected J-Link OB host
    • J-Link OB reference board (subject to availability)
    • J-Link OB programming utility for testing and production purposes
    Includes free software updates and 1 (one) year of email support

    4,980.--

    8.25.01Starter Kit:
    J-Link OB Fixed Single Target – Shipping product (FSTP)

    J-Link OB debug and program only specified target device soldered onto same target board for use within shipping products — commercial use is permitted.

    The starter Kit contains the following components:

    • 5 OB licenses for initial evaluation purpose only
    • J-Link BASE
    • 6-Pin Needle Adapter
    • Documentation which includes schematic for selected J-Link OB host
    • J-Link OB reference board (subject to availability)
    • J-Link OB programming utility for testing and production purposes

    Includes free software updates and 1 (one) year of email support

    5,980.--

    8.25.02Starter Kit:
    J-Link OB Detachable Multi-target – Internal use (MTDI)

    J-Link OB resides on its own detachable target board and can be used to program multiple targets (same set as supported by J-Link) for internal use only — commercial use is permitted.

    The starter kit contains the following components:

    • 5 OB licenses for initial evaluation purpose only
    • J-Link BASE
    • 6-Pin Needle Adapter
    • Documentation which includes schematic for selected J-Link OB host
    • J-Link OB reference board (subject to availability)
    • J-Link OB programming utility for testing and production purposes

    Includes free software updates and 1 (one) year of email support

    5,980.--

    8.25.03Starter Kit:
    J-Link OB Detachable Multi-target – Production (MTDP)

    J-Link OB resides on its own detachable target board and can be used to program multiple targets (same set as supported by J-Link) for production purposes — commercial use is permitted.

    The starter kit contains the following components:

    • 5 OB licenses for initial evaluation purpose only
    • J-Link BASE
    • 6-Pin Needle Adapter
    • Documentation which includes schematic for selected J-Link OB host
    • J-Link OB reference board (subject to availability)
    • J-Link OB programming utility for testing and production purposes

    Includes free software updates and 1 (one) year of email support

    6,980.--

    8.25.04Additional J-Link OB licensesAdditional J-Link OB licences for general purpose use. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.00 to 8.25.03). Additional licenses have the Virtual COM Port option included. Prices vary between different J-Link OB models (volume discounts available).Upon request
    8.25.05Add-On:
    Drag & Drop Programming
    The Drag & Drop feature allows a J-Link to be recognized as flash drive, which can be used as a programming interface by Drag & Dropping binary files onto the J-Link drive. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.00 to 8.25.03).Upon request
    8.25.06Add-On:
    Hardware Flow Control
    Hardware flow control allows the J-Link OB to maintain a reliable data transmission via the Virtual COM port (VCOM) using the RTS/CTS lines. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.00 to 8.25.03).Upon request

    J-Link OB — Evaluation board use

    Part #ItemDescriptionPrice [EUR]
    8.25.07Starter Kit:
    J-Link OB – Evaluation Board (EVAL)

    J-Link OB debug and program only specified target device soldered onto same target board for evaluation use only.

    The starter kit contains the following components:

    • 5 OB licenses for initial evaluation purpose only
    • J-Link BASE
    • 6-Pin Needle Adapter
    • Documentation which includes schematic for selected J-Link OB host
    • J-Link OB reference board (subject to availability)
    • J-Link OB programming utility for testing and production purposes
    Includes free software updates and 1 (one) year of email support

    1,980.--

    8.25.08Additional J-Link OB licenses

    Additional J-Link OB licences for evaluation purposes. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.07). Minimum number of licenses is 100 — Volume discounts available

    Upon request
    8.25.09Add-On:
    Drag & Drop Programming
    The Drag & Drop feature allows a J-Link to be recognized as flash drive, which can be used as a programming interface by Drag & Dropping binary files onto the J-Link drive. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.07).Upon request
    8.25.10Add-On:
    Hardware Flow Control
    Hardware flow control allows the J-Link OB to maintain a reliable data transmission via the Virtual COM port (VCOM) using the RTS/CTS lines. The item can only be purchased in combination with a new or existing J-Link OB Starter Kit (8.25.07).Upon request

    Basic Support

    Part #ItemDescriptionPrice [EUR]
    8.05.00

    Basic Support for J-Link

    Renewal of Basic Support for 12 additional months

    248.--

    Contact us

    Company Support

    Part #ItemDescriptionPrice
    5.05.10Company Support for hardware devicesSupport for all devices within an organization, regardless of the support status of a single device. Help is guaranteed as long as the device version is under maintenance. Upon request

    Extended Coverage

    Part #ItemDescriptionPrice [EUR]
    8.XX.XX.01Extended Coverage for J-Link (+12 months)Extension of Basic Support and hardware warranty for 12 additional months.
    Available only at initial purchase of the hardware.

    98.--

      Web Shop

    8.XX.XX.02Extended Coverage for J-Link (+24 months)Extension of Basic Support and hardware warranty for 24 additional months. Available only at initial purchase of the hardware.

    148.--

      Web Shop

    Accessories

    Part #ItemDescriptionPrice [EUR]
    8.06.80Mounting Block (4 pcs)Mounting block to securely fasten a J-Link PRO PoE during use

    18.--

      Web Shop

    8.06.81Mounting Block (20 pcs)Mounting block to securely fasten a J-Link PRO PoE during use

    48.--

      Web Shop

    Adapters

    Part #ItemDescriptionPrice [EUR]
    8.06.112mm AdapterAdapts from .1" 20-pin standard connector to 2mm 20-pin connector.

    49.--

    Web Shop

    8.06.295V Target Supply AdapterAdapts from standard 20-pin 0.1" socket to a standard 20-pin 0.1" header on the target side, provides a supply voltage of 5 V.

    98.--

    Web Shop

    8.06.166-Pin Needle Adapter

    Adapts from .1" 20-pin connector to .05" 6-pin needle pattern.

    Package includes:

    • 6-pin cable with pins and legs

    98.--

    Web Shop

    8.06.029-Pin Cortex-M Adapter

    Adapts from 20-pin, 0.1'' Standard connector to .05" 9-pin Cortex-M connector.

    Package includes:

    • .05" 10-pin ribbon cable (15 cm)

    32.--

    Web Shop

    8.06.0410-Pin Needle Adapter

    Adapts from .1" 20-pin Standard connector to .05" 10-pin needle pattern.

    Package includes:

    • 10-pin cable with pins and legs

    98.--

    Web Shop

    8.06.0314-Pin TI Adapter

    Adapts from 20-pin, 0.1'' Standard connector to TI 14-pin connector.

    Package includes:

    • .1" 14-pin ribbon cable (18 cm)

    49.--

    Web Shop

    8.06.0019-Pin Cortex-M Adapter

    Adapts from .1" 20-pin Standard connector to .05" 19-pin Cortex-M connector.

    Package includes:

    • .05" 20-pin ribbon cable (15 cm)

    32.--

    Web Shop

    8.06.2850-Mil 10-Pin Patch Adapter

    Adapts from the standard 20 pin 0.1" connector to the standard 10-pin 0.05" Cortex-M connector that is also used on many non-Cortex-M designs but with non-standard pinout. This adapter allows custom connections/wiring between the 20-pin and 10-pin side.

    Package includes:

    • .05" 10-pin ribbon cable (15 cm)
    • 10 jumper wires for manual setup

    49.--

    Web Shop

    8.06.37Arduino MKR AdapterAdapter to connect a J-Link EDU mini with 0.05"-pitch connector with cable or regular J-Link with standard 20-pin header with an Arduino board of the MKR series

    32.--

    Web Shop

    8.08.01ARM-14 Adapter

    Adapter for Arm targets with .1" 14-pin mating JTAG connector.

    Package includes:

    • .1" 14-pin ribbon cable (18 cm)

    68.--

    Web Shop

    8.06.27Flying Wire Adapter

    Adapts from the standard 20 pin 0.1" connector to a 10-pin row, allowing to connect J-Link or Flasher  to target PCBs via flying wires. Especially useful when hooking up prototype HW where no final connector is decided yet. Or for manually connecting a J-Link or Flasher to ST Discovery boards.

    Package includes:

    • 10 jumper wires for manual setup

    68.--

    Web Shop

    8.06.15Intel FPGA Adapter

    The Intel FPGA Adapter (formerly J-Link Altera Adapter) connects to the 10-pin 100-mil Intel FPGA JTAG connector providing debug access to FPGA-based MCU cores like the dual-core Arm Cortex-A9 in the Cyclone V devices.

    Package includes:

    • .1" 10-pin ribbon cable (18 cm)

    49.--

    Web Shop

    8.06.08J-Link Mictor 38 AdapterAdapts from 38-pin Mictor connector to standard 20-pin connector.

    148.--

    Web Shop

    8.06.13Measurement+Patch Adapter

    Adapter for non-standard J-Link <-> Target connection.

    Package includes:

    • 10 jumper wires for manual setup

    98.--

    Web Shop

    8.06.23

    Microchip 2-Wire JTAG TDI Adapter

    Adapts from the standard .1" 20-pin target connector to Microchip .1" 6-pin connector.

    Package includes:

    • 20-pin to 6-pin adapter
    • .1" 6-pin ribbon cable (21 cm)

    49.--

    Web Shop

    8.06.09Microchip Adapter

    Adapts from the standard .1" 20-pin target connector to Microchip RJ11 modular debug connector.

    Package includes:

    • 6-pin RJ11 modular connector cable.

    49.--

    Web Shop

    8.06.42MIPI-60 AdapterAllows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems.

    98.--

    Web Shop

    8.06.30Programming Voltage AdapterThe Programming Voltage Adapter delivers two externally provided voltages to the target for programming targets with voltage requirements beyond 5 V. It can directly be inserted between the J-Link and the debug cable maintaining a 1:1 connection of all debug signals.

    98.--

    Web Shop

    8.06.32Right Angle Female to Female (RAFF) AdapterRight angle female to female adapter with two female 0.1"-pitch 20-pin connectors. The adapter can be used to physically connect Flasher Compact to the target without cable.

    49.--

    Web Shop

    8.06.01RX Adapter

    Adapts from .1" 20-pin Standard connector to 14-pin RX600 JTAG connector.

    Package includes:

    • .1" 14-pin ribbon cable (18 cm)

    98.--

    Web Shop

    8.06.10RX FINE Adapter

    Adapts from .01" 20-pin standard connector to .1" 14-pin RX FINE connector.

    Package includes:

    • .1" 14-pin ribbon cable (18 cm)

    49.--

    Web Shop

    8.06.24SiFive-ARTY AdapterThe SiFive-ARTY Adapter allows debug connections between J-Link and the ARTY board running SiFive RISC-V core bitstreams.

    49.--

    Web Shop

    8.06.12Signal Smoothing AdapterThe Signal Smoothing Adapter can be inserted between J-Link and the debug target to overcome signal integrity issues.

    49.--

    Web Shop

    8.06.17SiLabs C2 Adapter

    Adapts from .1" 20-pin connector to .1" 10-pin SiLabs C2 connector.

    Package includes:

    • .1" 10-pin ribbon cable (18 cm)

    68.--

    Web Shop

    8.06.39STDC14 Adapter

    Adapts from the 20-pin 0.1'' J-Link and Flasher debug connector to the 14-pin 0.05'' connector defined by ST.

    49.--

      Web Shop

    8.06.14Supply AdapterProvides a fixed I/O voltage level for VTREF. It eliminates the need to connect VTREF. It eliminates the need to connect to the target.

    68.--

    Web Shop

    8.06.18Target Supply AdapterProvides a default voltage of 3.3 V to power the target using pin 19. The voltage can be adjusted by replacing resistors.

    68.--

    Web Shop

    8.06.36Test Farm Power AdapterEnables power that is supplied to a target through a USB connector to be switched on and off remotely using J-Link software.

    98.--

    Web Shop

    8.06.06TI-CTI-20 AdapterAdapts from the standard .1" 20-pin target connector to TI CTI-20 connector.

    68.--

    Web Shop

    8.06.19

    Xilinx Adapter

    Adapts from the standard .1" 20-pin target connector to Xilinx 2mm 14-pin connector (comp. Platform Cable USB II).

    Package includes:

    • 14-pin 2mm ribbon cable

    49.--

    Web Shop

    Isolators

    Part #ItemDescriptionPrice [EUR]
    8.07.00JTAG IsolatorStandard .1" 20-pin male connector to provide electrical isolation.

    198.--

      Web Shop

    8.07.01SWD IsolatorStandard .1" 20-pin male connector to provide electrical isolation.

    198.--

      Web Shop

    8.07.02USB IsolatorUSB connector to provide host side electrical isolation.

    148.--

      Web Shop

    Tools

    Part #ItemDescriptionPrice [EUR]
    8.08.13J-Link Upgrade BASE to PLUS

    J-Link PLUS Software bundle includes:

    • J-Flash / J-Flash SPI license
      Software to program EEPROM and flash chips in ARM systems.
    • J-Link Unlimited Flash Breakpoints license
      Unlimited Flash Breakpoints software for J-Link.
    • Ozone - The J-Link Debugger
    • Monitor Mode
    • J-Link ARM RDI / RDDI license
      License pack for the RDI / RDDI interface

    Includes 6 months of free support and updates

    298.--

      Web Shop

    8.08.06J-Link SDK

    Developer Pack DLL for J-Link.

    Includes 6 months of free support (2h) and updates.

    Company-wide License.

    1,980.--

      Web Shop

    8.08.18J-Link SDK extension

    J-Link SDK one year Support and Update Agreement, including one year of updates and a support contingent of 2h.

    Can only be purchased by customers with a J-Link SDK License (Model 8.08.06).

    980.--

      Web Shop

    8.08.29J-Link DSK

    Device Support Kit for J-Link / J-Trace.

    Includes 6 months of free support (2h) and updates.

    Company-wide License.

    1,980,--

      Web Shop

    8.08.31J-Link DSK extension

    J-Link DSK one year Support and Update Agreement, including one year of updates and a support contingent of 2h.

    Can only be purchased by customers with a J-Link DSK License (Model 8.08.29)

    980,--

      Web Shop

    Please note:
    All prices exclude German sales tax. For shipments within Germany, please add sales tax. All prices are subject to change at any time and do not include shipment costs.

    For price enquiries please contact sales@segger.com

    全球总部

    德国: SEGGER Microcontroller GmbH

    地址: Ecolab-Allee 5
    40789 Monheim am Rhein, Germany
    电邮: info@segger.com
    电话: +49-2173-99312-0
    传真: +49-2173-99312-28

    网点分布

    中国:哲戈微系统科技(上海)有限公司

    地址: 中国上海市闵行区秀涟路133号
    大虹桥国际A 栋218室
    邮编201199
    电邮: china@segger.com
    电话: +86-133-619-907-60

    通过ISO 9001认证

    ISO 9001

    30多年的嵌入式行业经验

    First-class embedded software tools since 1992
    • 版本说明
    • 免责声明
    • 隐私策略
    • 沪ICP备2022005181号
    • 沪公网安备 31011202014525号
    © 2025 SEGGER - 版权所有.

    您即将离开 segger.cn 而访问境外网站,是否继续?
