SEGGER Evaluation Software for ST STM32H743ZI-Nucleo

SEGGER Evaluation Software

Included components:

Product	Supported features
emPower OS
embOS	Core + Profiling
emCompress	emCompress-Embed, emCompress-ToGo
emCrypt	PRO
emFile	BASE + Encryption, FAT, FAT LFN, Journaling, Storage Layer, RAMDisk
emModbus	Master + Slave
emNet	BASE + CoAP Server / Client, DHCP Server, (m)DNS/LLMNR/DNS-SD Server, FTP Client, FTP Server, MQTT Client, NetBIOS Name Service, NTP Client, SMTP Client, SNMP Agent, SNMP Agent SNMPv3 USM, SNTP Client, UPnP, WebSocket, emNet driver Synopsys QOS
emSecure	emSecure-RSA, emSecure-ECDSA
emSSH	Secure Shell software library, Secure Copy
emSSL	Secure Sockets Layer
emUSB-Device	BASE + Audio, Bulk, CDC, DFU, HID, IP-over-USB component, MIDI, MSD, MSD-CDROM, MTP, Printer Class, VirtualMSD, Video, Target driver for ST STM32F2/F4/F7/H7
emUSB-Host	BASE + Audio, Bulk, CCID, CDC, FTDI UART, HID, LAN, MIDI, MSD, MTP, Printer Class, Synopsys DWC2 High Speed driver
emWeb	Web Server
IoT Toolkit	HTTP Client, JSON Parser

Download SEGGER Evaluation Software for ST STM32H743ZI-Nucleo and SEGGER Embedded Studio

Other downloads

SEGGER Notifications

Subscribe to SEGGER Evaluation Software Notifications

Converting ST-LINK on-board into a J-Link

SEGGER offers a firmware upgrading the ST-LINK on-board on the Nucleo and Discovery Boards. This firmware makes the ST-LINK on-board compatible to J-Link OB, allowing users to take advantage of most J-Link features like the ultra fast flash download and debugging speed or the free-to-use GDBServer.

More information

Recommended Software

SEGGER Embedded Studio

SEGGER Embedded Studio is a streamlined and powerful C/C++ IDE (Integrated Development Environment) for ARM microcontrollers. It is specifically designed to provide users with everything needed for professional embedded development: an all-in-one solution providing stability and a continuous workflow.

More information

Download SEGGER Embedded Studio

SEGGER SystemView

SEGGER SystemView is a real-time recording and visualization tool that reveals the true runtime behavior of an application, going far deeper than the insight provided by debuggers. This is particularly effective when developing and working with complex systems comprising multiple threads and interrupts: SystemView can ensure a system performs as designed, can track down inefficiencies, and show unintended interactions and resource conflicts.

More information

Download SEGGER SystemView

Data Sheets

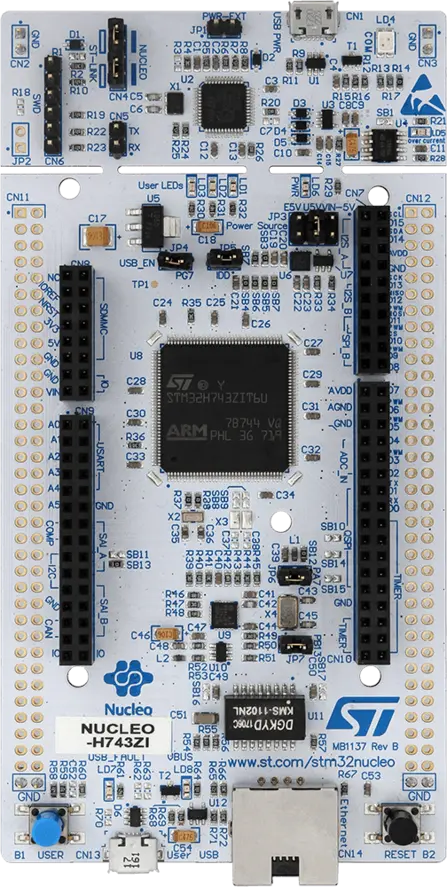

ST STM32H743ZI-Nucleo

STM32 microcontroller in LQFP144 package
External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards)
Ethernet compliant with IEEE-802.3-2002 (depending on STM32 support)
USB OTG or full-speed device (depending on STM32 support)
3 user LEDs
2 user and reset push-buttons
32.768 kHz crystal oscillator
USB with Micro-AB
SWD
Ethernet RJ45 (depending on STM32 support)
ST Zio connector including Arduino™ Uno V3
ST morpho
Flexible power-supply options: ST-LINK USB VBUS or external sources

STM32H743ZI

32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache
2 Mbytes of Flash memory with read-while-write support
1 Mbyte of RAM
Dual mode Quad-SPI memory interface running up to 133 MHz
Flexible external memory controller
CRC calculation unit
Low-power consumption
4 DMA controllers to unload the CPU
4 I2Cs FM+ interfaces (SMBus/PMBus)
4 USARTs
4 UARTs
6 SPIs
SWPMI single-wire protocol master I/F
MDIO Slave interface
2 SD/SDIO/MMC interfaces (up to 125 MHz)
2 CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)
2 USB OTG interfaces (1FS, 1HS/FS) crystal-less solution with LPM and BCD
Ethernet MAC interface with DMA controller
HDMI-CEC
8- to 14-bit camera interface (up to 80 MHz)
LCD-TFT controller up to XGA resolution
Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
Hardware JPEG Codec
Up to 22 timers and watchdogs
SWD & JTAG interfaces
4-Kbyte Embedded Trace Buffer
